// 장애인ㆍ노인ㆍ임산부등의편의증진보장에관한법률 7조 (대상시설) 6호Check(CDAPA_7_0_6){ KS}KS{ getBuildingUsage() = "CommunicationFacility"}// 장애인ㆍ노인ㆍ임산부등의편의증진보장에관한법률 7조 (대상시설) Check(CDAPA_7){ IF CS THEN KS } CS{ getResult(CDAPA_7_0_1) = TRUE OR getResult(CDAOA_7_0_2) = TRUE OR getResult(CDAOA_7_0_3) = TRUE OR getResult(CDAOA_7_0_4) = TRUE } KS{ isInstalled(ConvenientFacility) = TRUE }// 장애인ㆍ노인ㆍ임산부등의편의증진보장에관한법률 7조 (대상시설) 1호Check(CDAPA_7_0_1){ KS}KS{ getBuildingUsage() = "Park"}// 장애인ㆍ노인ㆍ임산부등의편의증진보장에관한법률 7조 (대상시설) 2호Check(CDAPA_7_0_2){ KS}KS{ getBuildingUsage() = "PublicFacility"}// 장애인ㆍ노인ㆍ임산부등의편의증진보장에관한법률 7조 (대상시설) 3호Check(CDAPA_7_0_3){ KS}KS{ getBuildingUsage() = "MultiUnitHouse"}// 장애인ㆍ노인ㆍ임산부등의편의증진보장에관한법률 7조 (대상시설) 4호Check(CDAPA_7_0_4){ KS}KS{ getBuildingUsage() = "CommunicationFacility"}
// 장애인ㆍ노인ㆍ임산부 등의 편의증진 보장에 관한 법률 8조 (편의시설의 설치기준) 1항Check(CDAPA_8_1){ KS}KS{ getResult(EDCDAPA_4) = TRUE}
//주차장법 12조의2 (다른 법률과의 관계) 1호Check(PLA_12-2_0_1){ KS}KS{getBuildingToLandRatio() <90/100}//주차장법 12조의2 (다른 법률과의 관계)2호Check(PLA_12-2_0_2){ KS}KS{ getFloorAreaRatio()<1500%}//주차장법 12조의2 (다른 법률과의 관계) 3호Check(PLA_12-2_0_3){ KS}KS{ getSiteArea()>45 m2}// 주차장법 12조의2 (다른 법률과의 관계)Check(PLA_12-2){ IF CS THEN KS}CS{ isObjectProperty(Building.isExclusiveUseOfParkingLot)=True}KS{ getResult(PLA_12-2_0_1)=True getResult(PLA_12-2_0_2)=True getResult(PLA_12-2_0_3)=True}
//주차장법 19조 (부설주차장의 설치) 1항 Check(PLA_19_1){ IF CS THEN KS } CS{ getSiteUsage()="UrbanArea" OR getSiteUsage()="DistrictUnitPlanningZone" OR getSiteUsage()="ControlArea" } KS{ ParkingLot myParkingLot{ isObjectProperty(ParkingLot.isAttachedParking)=True } isInstalled(myParkingLot, Facility)=True isInstalled(myParkingLot, Site)=True }
//주차장법 19조의5 (기계식주차장의 설치기준)Check(PLA_19-5){ IF CS THEN KS}CS{ getSpaceUsage()="MechanicalParking"}KS{ getResult(ERPA_16-2_0_1)=True}
//주차장법 6조 (주차장설비기준 등) 1항Check(PLA_6_1){ KS}KS{ getResult(ERPA_2)=TRUE getResult(ERPA_3)=TRUE getResult(ERPA_4)=TRUE getResult(ERPA_6)=TRUE getResult(ERPA_11)=TRUE}
//건축법 47조 (건축선에 따른 건축제한) 1항Check(BA_47_1){ KS}KS{ Floor myFloor{ Floor.number>0 } isOverBldAlignment(myFloor)=False}//건축법 47조 (건축선에 따른 건축제한) 2항Check(BA_47_2){ KS}KS{ Floor myFloor{ getVerticleDistance(Floor, "도로면" )<=4.5 } isOverBldAlignment(myFloor, 1)=False}
//건축법 48조 (구조내력 등) 1항1
//건축법 49조 (건축물의 피난시설 및 용도제한 등) 1항Check(BA_49_1){ IF CS THEN KS }CS{ getResult(EDBA_34_2)= TRUE OR getResult(EDBA_35_1) = TRUE OR getResuLt(EDBA_35_2) = TRUE OR getResuLt(EDBA_35_3) = TRUE OR getResuLt(EDBA_35_5) = TRUE OR getResult (EDBA_38) = TRUE OR getResuLt(EDBA_39_1) = TRUE OR getResuLt(EDBA_39_2) = TRUE}KS{Door myDoor{isObjectProperty(Door.isEntrance)=TRUE} isExist(Corridor) = TRUE isExist(Stair) = TRUE isExist(myDoor) = TRUE isExist(EvacuationFacility) = TRUE isExist(FireHydrant) = TRUE isExist(Tank) = TRUE isExist(ExtinguishingSystem)= TRUE isExist(Passage)=True getResult(REFB_11_1)= TRUE getResult(REFB_11_2)= TRUE getResult(REFB_11_3)= TRUE getResult(REFB_11_4)= TRUE getResult(REFB_11_5)= TRUE}//건축법 49조 (건축물의 피난시설 및 용도제한 등) 3항 Check(BA_49_3){ KS}KS{ getResult(EDBA_53_1)=True getResult(EDBA_53_2)=True}//건축법 49조 (건축물의 피난시설 및 용도제한 등) 2항Check(BA_49_2){ IF CS THEN KS}CS{ getResult(EDBA_34_1)= TRUE OR getResult(EDBA_34_3)= TRUE OR getResult(EDBA_34_4)= TRUE OR getResult(EDBA_46_1)= TRUE OR getResult(EDBA_46_2)= TRUE OR getResult(EDBA_46_3)= TRUE OR getResult(EDBA_46_4)= TRUE OR getResult(EDBA_46_5)= TRUE OR getResult(EDBA_47_1)= TRUE OR getResult(EDBA_47_2)= TRUE OR getResult(EDBA_48_1)= TRUE OR getResult(EDBA_48_2)= TRUE OR getResult(EDBA_50)= TRUE OR getResult(EDBA_51_1)= TRUE OR getResult(EDBA_51_2)= TRUE OR getResult(EDBA_51_3)= TRUE OR getResult(EDBA_52)= TRUE}KS{ getResult(REFB_3)= TRUE AND getResult(REFB_4)= TRUE AND getResult(REFB_8)= TRUE AND getResult(REFB_9)= TRUE AND getResult(REFB_10)= TRUE AND getResult(REFB_11)= TRUE AND getResult(REFB_14)= TRUE AND getResult(REFB_15)= TRUE AND getResult(REFB_16)= TRUE AND getResult(REFB_17)= TRUE AND getResult(REFB_18)= TRUE}
//건축법 50조 (건축물의 내화구조와 방화벽) 1항check(BA_50_1){ getResult(EDBA_56_1) = TRUE getResult(EDBA_56_2) = TRUE isObjectProperty(MainStructuralPart.isFireResistantStructure) = TRUE}
//건축법 51조 (방화지구 안의 건축물) 2항 Check(BA_51_2){ IF CS THEN KS } CS{ getResult(LPUA_37_1_4)=True } KS{ Construction myConstruction { isInstalled(Construction , Rooftop)=True OR Construction.height>=3 m } isObjectProperty(myConstruction.MainStructuralPart.Material.nonCombustibility)=True }//건축법 51조 (방화지구 안의 건축물) 3항Check(BA_51_3){ KS}KS{ getResult(REFB_23_1)=True getResult(REFB_23_2)=True}//건축법 51조 (방화지구 안의 건축물) 1항 Check(BA_51_1){ IF (!CS1 AND CS2) THEN KS}CS1{ getResult(EDBA_58)=True}CS2{ getResult(LPUA_37_1_4)=True}KS{ Wall myWall{ isObjectProperty(Wall.isExternal)=True } isFireResistantStructure(MainStructure) = TRUE isFireResistantStructure(myWall) = TRUE}
//건축법 52조 (건축물의 마감재료) 3항Check(BA_52_3){}// 비대상?//건축법 52조 (건축물의 마감재료) 1항Check(BA_52_1){ IF CS THEN KS }Building myBuilding{getResult(EDBA_61_1)=TRUE}CS{isExist(myBuilding)=TRUE}KS{getResult(REFB_24_1)=TRUEgetResult(REFB_24_2)=TRUEgetResult(REFB_24_3)=TRUEgetResult(REFB_24_4)=TRUE}//건축법 52조 (건축물의 마감재료) 2항Check(BA_52_2){IF CS THEN KS}CS{getResult(EDBA_61_2)=TRUE}KS{getResult(REFB_24_5)=TRUE}
Check(BA_53){ IF (CS) THEN KS END IF } CS{ Space.Floor.number<0 ; } KS{ getResult(REFB_25_1)=True }
// 건축법 55조 (건축물의 건폐율)Check(BA_55){ IF CS THEN KS}KS{ getResult(LPUA_77_1) = TRUE getResult(LPUA_77_2) = TRUE getResult(LPUA_77_3) = TRUE}
//건축법 56조 (건축물의 용적률)Check(BA_56){KS}KS{getResult(LPUA_78)= TRUE}
//건축법 64조 (승강기) 1항check(BA_64_1){ IF CS THEN KS}CS{ getBuildingStoriesCount() >= 6 getGrossFloorArea()>= 2000 m2}KS{ isExist(Elevator) = TRUE getResult(RFB_5)=TRUE getResult(RFB_6)=TRUE getResult(REFB_29_1)=True}//건축법 64조 (승강기) 2항 check(BA_64_2){ IF (!CS1 AND CS2) THEN KS } CS1{ getResult(RFB_9)=TRUE } CS2{ getBuildingHeight()>31 m } KS{ getResult(BA_64_1) = TRUE isObjectProperty(Elevator.isEmergency)= TRUE getResult(EDBA_90_1)=TRUE getResult(RFB_10)=TRUE }
//check() {getobjectproperty(CeilingCovering.height)}test
// 건축법 시행령 34조 (직통계단의 설치) 5항check(EDBA_34_5){ getResult(REFB_8_1) = TRUE getResult(REFB_8-2_1) = TRUE getResult(REFB_8-2_2) = TRUE getResult(REFB_8-2_3) = TRUE}//건축법 시행령 34조 (직통계단의 설치) 2항3호 Check(EDBA_34_2_3){ Floor myFloor{ getFloorUsage()= “MultiUnitHouse” getObjectProperty(Floor.numberOfHousehold)>=4 OR getFloorUsage() = “BusinessFacility.Officetel” } getTotalFloorArea(myFloor.Room)>=300 m2 }//건축법 시행령 34조 (직통계단의 설치) 2항4호check(EDBA_34_2_4){ IF getResult(EDBA_34_2_1)=FALSE OR getResult(EDBA_34_2_2)=FALSE OR getResult(EDBA_34_2_3)=FALSE THEN getTotalFloorNumber(myFloor.Room)>=400 m2 END IF}//건축법 시행령 34조 (직통계단의 설치) 2항5호check(EDBA_34_2_5){ Floor myFloor { getFloorNumber()<0 } getTotalFloorArea(myFloor.Room)>= 200 m2}// 건축법 시행령 34조 (직통계단의 설치) 1항Check(EDBA_34_1){ KS}KS{Floor myFloor{ isObjectProperty(Floor.isEscape) = TRUE}Space mySpace{ getObjectProperty(Space.usage)="PerformanceHall" OR getObjectProperty(Space.usage)="AssemblyHall" OR getObjectProperty(Space.usage)="Auditorium" OR getObjectProperty(Space.usage)="ExhibitionHall"}Door myDoor{ isDirectlyAccessible(Door, Ground)=TRUE}Stair myStair{ isObjectProperty(Stair.isDirect)=TRUE isAccessible(Stair,myFloor)=TRUE OR isAccessible(Stair,Ground)=TRUE}Ramp myRamp{ isAccessible(Ramp,myFloor)=TRUE OR isAccessible(Ramp,Ground)=TRUE}Floor myFloor2{ isObjectProperty(Floor.isEscape)=FALSE OR hasObject(Floor, myDoor)=FALSE} Zone myZone{ isDirectlyAccessible(myStair, Zone)=FALSE } IF getFloorNumber(mySpace)>0 getFloorArea(mySpace)<=300 m2 isFireResistantStructure(MainStructuralPart)=TRUE OR isObjectProperty(MainStructuralPart.Material.nonCombustibility)=TRUE THEN IF getBuildingStoriesCount()>=16 getBuildingUsage()="MultiUnitHouse" THEN ED= 40 ELSE THEN ED=50 END IFELSE IF getBuildingUsage() = "Factory" isExist(ExtinguishingSystem)=TRUE isObjectProperty(ExtinguishingSystem.isAutomatic)=TRUE getResult(REFB_8_2)=TRUE THEN IF getBuildingUsage() = "UnmannedFactory" THEN ED=100 ELSE THEN ED=75 END IF ELSE THEN ED=30 END IF (hasObject(myFloor,myStair)=TRUE hasObject(myZone, myStair)=TRUE getObjectDistance(Room,myStair, 1)<=ED) OR (hasObject(myFloor,myRamp)=TRUE hasObject(myZone, myRamp)=TRUE getObjectDistance(Room,myRamp, 1)<=ED)}//건축법 시행령 34조 (직통계단의 설치) 2항 Check(EDBA_34_2){ IF (CS1 AND CS2) THEN KS } CS1{ isObjectProperty(Floor.isEscape) = FALSE } CS2{ getResult(EDBA_34_2_1)=TRUE OR getResult(EDBA_34_2_2)=TRUE OR getResult(EDBA_34_2_3)=TRUE OR getResult(EDBA_34_2_4)=TRUE OR getResult(EDBA_34_2_5)=TRUE } KS{ Floor myFloor{ isObjectProperty(Floor.isEscape)=TRUE } Stair myStair{ isObjectProperty(Stair.isDirect) = TRUE isAccessible(myFloor, Stair)= TRUE OR isAccessible(Ground,Stair) = TRUE } getObjectCount(myStair)>2 getResult(REFB_8_1) = True }//건축법 시행령 34조 (직통계단의 설치) 2항1호 Check(EDBA_34_2_1){ KS } KS{ Floor myFloor1{ getObjectUsage(Floor) ="ClassIINeighborhoodLivingFacility.PerformanceHall" OR getObjectUsage(Floor)="ClassIINeighborhoodLivingFacility.ReligiousAssemblyFacility" } Floor myFloor2 { getObjectUsage(Floor)="CulturalAndAssemblyFacility" getObjectUsage(Floor) != "CulturalAndAssemblyFacility.ExhibitionHall" getObjectUsage(Floor) != "CulturalAndAssemblyFacility.ZoologicalAndBotanicalGarden“ getObjectUsage(Floor) = "ReligiousFacility" getObjectUsage(Floor) = “AmusementFacility.BarBusiness" getObjectUsage(Floor) = “AmusementFacility.FuneralParlors“ } getTotalFloorArea(myFloor1.Space)>=300 m2 OR getTotalFloorArea(myFloor2.Space)>=200 m2 }//건축법 시행령 34조 (직통계단의 설치) 2항2호 Check(EDBA_34_2_2){ Building myBuilding{ getBuildingUsage()="DentalClinic" } Space mySpace{ getSpaceUsage() = "Ward" } Floor myFloor1 { getObjectProperty(Floor.number)>=3 getObjectUsage(Floor) = “DetachedHouse.MultiUserHouse” OR getObjectUsage(Floor) = “DetachedHouse.MultiFamilyHouse” OR getObjectUsage(Floor) = “ClassIINeighborhoodLivingFacility.EducationalInstitute” OR getObjectUsage(Floor) = “ClassIINeighborhoodLivingFacility.ReadingRooms” OR getObjectUsage(Floor) = “CommercialFacility” OR getObjectUsage(Floor) = “TransportationFacility.PassengerTrafficFacilities” OR ( getObjectUsage(Floor) = “MedicalFacility” ADN hasObject(myBuilding, mySpace)=TRUE ) OR getObjectUsage(Floor) = “EducationAndResearchFacility.EducationalInstitutes” OR getObjectUsage(Floor) = “FacilitiesForTheAgedAndChildren.ChildrenRelatedFacilities” OR getObjectUsage(Floor) = “EducationAndResearchFacility.WelfareFacilityForTheAged” OR getObjectUsage(Floor) = “Trainingfacility.YouthHostel” OR getObjectUsage(Floor) = “LodgingFacility” } Floor myFloor2{ getObjectUsage(Floor) = “ClassIINeighborhoodLivingFacility.FacilityForProvidingInternetComputerGameService” } getTotalFloorArea(myFloor1.Room)>= 200 m2 OR getTotalFloorArea(myFloor2.Room)>= 300 m2 }// 건축법 시행령 제 34조 (직통계단의 설치) 3항 check(EDBA_34_3){ IF CS THEN KS ENDIF } CS{ isObjectProperty(Building.isHighriseBuilding) = TRUE } KS{ Stair myStair{ isObjectProperty(Stair.isDirect) = TRUE } Zone myZone{ isObjectProperty(Zone.isEgressSafetyZone) = TRUE } Floor myFloor{ isObjectProperty(Floor.isEscape) = TRUE } isGoThrough(myFloor, myZone, myStair) = TRUE OR isGoThrough(myFloor, Ground, myStair) = TRUE getObjectCount(myZone) >= getBuildingStoriesCount()/30 }// 건축법 시행령 34조 (직통계단의 설치) 4항 check(EDBA_34_4){ IF !CS THEN KS ENDIF } CS{ Stair myStair{ isObjectProperty(Stair.isDirect) = TRUE } Floor myFloor{ isObjectProperty(Floor.isEscape) = TRUE } isDirectlyAccessible(myStair, myFloor) = TRUE OR isDirectlyAccessible(myStair, Ground) = TRUE } KS{ isObjectProperty(Building.isQuasiHighriseBuilding) = TRUE Stair myStair{ isObjectProperty(Stair.isDirect) = TRUE } Zone myZone{ isObjectProperty(Zone.isEgressSafetyZone) = TRUE } Floor myFloor{ isObjectProperty(Floor.isEscape) = TRUE } isGoThrough(myFloor, myZone, myStair) = TRUE OR isGoThrough(myFloor, Ground, myStair) = TRUE (getBuildingStoriesCount()/2)-5 < getFloorNumber(myZone) getFloorNumber(myZone) < (getBuildingStoriesCount()/2)+5 }
//건축법 시행령 35조(피난계단의 설치) 1항Check(EDBA_35_1){ IF (!CS1 AND !CS2 AND CS3) THEN KS}CS1 { isFireProofStructure(MainStructuralPart) = TRUE OR isObjectProperty(MainStructuralPart.Material.nonCombustibility) = TRUE}CS2 { getResult(EDBA_35_1_1) = TRUE OR getResult(EDBA_35_1_2) = TRUE}CS3{ Floor myFloor { Floor.number > 5 OR Floor.number <= -2 } Stair myStair { isObjectProperty(Stair.isDirect) = TRUE } hasElement(myFloor, myStair) = TRUE}KS { isObjectProperty(myStair.isEscape) = TRUE OR isObjectProperty(myStair.isSpecialEscape) = TRUE}//건축법 시행령 35조(피난계단의 설치) 1항1호Check(EDBA_35_1_1){ KS}KS { Floor myFloor { getObjectProperty(Floor.number) >= 5 } getTotalFloorArea(myFloor) <= 200m2 }//건축법 시행령 35조(피난계단의 설치) 1항2호Check(EDBA_35_1_2){ KS}KS { Floor myFloor { Floor.number >= 5 } isFirePartition(myFloor, a, 200) = TRUE }//건축법 시행령 35조 (피난계단의 설치) 2항check(EDBA_35_2){ IF (CS1 AND CS2) THEN KS}CS1{ Building.usage != "MultiUnitHouse.SideCorridorTypeMultiUnitHouse"}CS2{ Floor myFloor{ IF (Building.usage = "MultiUnitHouse“) THEN getFloorNumber(Floor) >= 16 ELSE getFloorNumber(Floor) >= 11 ENDIF OR getFloorNumber(Floor) < -3 getFloorArea(Floor) >= 400m2 } Stair myStair { (isAccessible(Stair, Floor.isEscape) = TRUE OR isAccessible(Stair, Ground) = TRUE) isObjectProperty(Stair.isDirect) = TRUE } hasObject(myFloor, myStair) = TRUE}KS{ isObjectProperty(myStair.isSpecialEscape) = TRUE}//건축법 시행령 35조 (피난계단의 설치) 3항check(EDBA_35_3){ IF (CS) THEN KSCS{ getResult(EDBA_35_1) = TRUE Floor myFloor { Floor.usage = “CommercialFacility” } Stair myStair{ isObjectProperty(Stair.isDirect) = TRUE } isAccessible(myFloor, myStair) = TRUE}KS{ isObjectProperty(one.myStair.isSpecialEscape) = TRUE}//건축법 시행령 35조 (피난계단의 설치) 5항check(EDBA_35_5){ IF (CS) THEN KS}CS{ Floor myFloor{ Floor.number >= 5 OR Floor.usage = "CulturalAndAssemblyFacility.ExhibitionHall" OR Floor.usage = "CulturalAndAssemblyFacility.ZoologicalAndBotanicalGarden" OR Floor.usage = "CommercialFacility" OR Floor.usage = "PassengerTrafficFacilities“?? OR Floor.usage = "SportsFacility" OR Floor.usage = "AmusementFacility" OR Floor.usage = "FacilityForTourismAndRelaxation“??? OR Floor.usage = "Trainingfacility.TrainingFacilityInLivingZone“ } isExist(myFloor)=True }KS{ Stair myStair2{ isObjectProperty(Stair.isSpecialEscape) = True OR isObjectProperty(Stair.isEscape) = True } getResult(EDBA_34) = TRUE IF (getTotalFloorArea(myFloor.Space) >= 2000m2) THEN getObjectCount(myStair2) >= 1+ getFloorArea(myFloor.Space)/2000}
//건축법 시행령 36조 (옥외 피난계단의 설치) 1호Check(EDBA_36_0_1){ KS}KS{ Floor myFloor{ getFloorUsage()="CulturalAndAssemblyFacility.PerformanceHall" OR getFloorUsage()="AmusementFacility.BarBusiness" } FloorSlab myFloorSlab{ getObjectUsage(FloorSlab)="NeighborhoodLivingFacility.PerformanceHall" } getFloorUsage()="NeighborhoodLivingFacility.PerformanceHall" getObjectArea(myFloorSlab)>=300 m2 OR getTotalFloorArea(myFloor.Room)>300 m2 }//건축법 시행령 36조 (옥외 피난계단의 설치) 2호Check(EDBA_36_0_2){ KS}KS{ Floor myFloor{ getFloorUsage()="CulturalAndAssemblyFacility.AssemblyHall" } getTotalFloorArea(myFloor.Room)>=1000 m2}//건축법 시행령 36조 (옥외 피난계단의 설치)Check(EDBA_36){ IF CS THEN KS}CS{ getBuildingStoriesCount()>=3 getResult(EDBA_36_0_1)=True OR getResult(EDBA_36_0_2)=True}KS{ Stair myStair1{ isObjectProperty(Stair.isDirect)=True } Stair myStair2{ isObjectProperty(Stair.isEscape)=True isAccessible(Stair, Ground)=True } isExist(myStair1)=True isExist(myStair2)=True}
Check(EDBA_37){ IF (CS) THEN KS END IF Space mySpace{ Space.Floor.area > 3000 M2; Space.usage="PerformanceHall" OR Space.usage="AssemblyHall" OR Space.usage="Auditorium" OR Space.usage="ExhibitionHall" }}CS{ mySpace.Floor.number< 0 }KS{Stair myStair{Stair.isOutdoor = TRUE}Floor myFloor{Floor.isEscape = TRUE}Space mySpace{hasObject(Space, Ceiling) != TRUE} (isGoThrough(mySpace, myStair, myFloor)=True OR isGoThrough(mySpace, Ramp, myFloor)=True) AND isExternal(mySpace)=True }
//건축법 시행령 38조(관람석 등으로부터의 출구 설치) 1호Check(EDBA_38_0_1){ (getBuildingUsage() = "ClassIINeighborhoodLivingFacility.performancehall" OR getBuildingUsage() = "ClassIINeighborhoodLivingFacility.ReligiousAssemblyFacility") Space mySpace { getSpaceUsage(Space) = "ClassIINeighborhoodLivingFacility.performancehall" OR getSpaceUsage(Space) = "ClassIINeighborhoodLivingFacility.ReligiousAssemblyFacility" } getTotalFloorArea(mySpace) > 300}//건축법 시행령 38조(관람석 등으로부터의 출구 설치) 4호Check(EDBA_38_0_4){ getBuildingUsage() = "AmusementFacility"}//건축법 시행령 38조(관람석 등으로부터의 출구 설치) 3호Check(EDBA_38_0_5){ getBuildingUsage() = "FuneralParlor"}//건축법 시행령 38조(관람석 등으로부터의 출구 설치)Check(EDBA_38){ IF (CS) THEN KS ENDIF}CS{ getResult(EDBA_38_0_1) = TRUE OR getResult(EDBA_38_0_2) = TRUE OR getResult(EDBA_38_0_3) = TRUE OR getResult(EDBA_38_0_4) = TRUE OR getResult(EDBA_38_0_5) = TRUE}KS { Space mySpace = getSpace("Auditorium")+getSpace("AssemblyHall") Door myExit { isObjectProperty(Door.isEntrance) = TRUE isAccessible(mySpace, Door) = TRUE getResult(REFB_10_1) = TRUE } hasElement(mySpace, myExit)=TRUE }//건축법 시행령 38조(관람석 등으로부터의 출구 설치) 2호Check(EDBA_38_0_2){ getBuildingUsage() = "CulturalAndAssemblyFacility" getBuildingUsage() != "CulturalAndAssemblyFacility.ExhibitionHall" getBuildingUsage() != "CulturalAndAssemblyFacility.ZoologicalAndBotanicalGarden" getResult(REFB_10_2) = TRUE}//건축법 시행령 38조(관람석 등으로부터의 출구 설치) 3호Check(EDBA_38_0_3){ getBuildingUsage() = "ReligiousFacility" }
// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 1항 5호Check(EDBA_39_1_5){ KS}KS {Building myBuilding{getBuildingUsage() = “BusinessFacility.GovernmentOfficeBuilding”}isExist(myBuliding) = TRUE}// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 1항 10호Check(EDBA_39_1_10){ KS}KS {Building myBuilding{hasObject(Building, Elevator)}isExist(myBuliding) = TRUE}// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 1항 7호Check(EDBA_39_1_7){ KS}KS {Building myBuilding{getBuildingUsage() = “Warehouse”Building.grossFloorArea >= 5000 m2}isExist(myBuliding) = TRUE}// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 1항 Check(EDBA_39_1){ IF CS THEN KS}CS {getResult(EDBA_39_1_1) = TRUEOR getResult(EDBA_39_1_2) = TRUEOR getResult(EDBA_39_1_3) = TRUEOR getResult(EDBA_39_1_4) = TRUEOR getResult(EDBA_39_1_5) = TRUEOR getResult(EDBA_39_1_6) = TRUEOR getResult(EDBA_39_1_7) = TRUEOR getResult(EDBA_39_1_8) = TRUEOR getResult(EDBA_39_1_9) = TRUEOR getResult(EDBA_39_1_10) = TRUE}KS {Door myDoor{ isObjectProperty(Door.isEntrance)=TRUE}isExist(myDoor)=TRUEgetResult(REFB_11_1)=TRUEgetResult(REFB_11_2)=TRUEgetResult(REFB_11_3)=TRUEgetResult(REFB_11_4)=TRUEgetResult(REFB_11_5)=TRUEgetResult(REFB_11_6)=TRUE}// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 1항 1호Check(EDBA_39_1_1){ KS}KS {Building myBuilding{getBuildingUsage() = “PerformanceHall”OR getBuildingUsage() = “ReligiousAssemblyFacility ”OR getBuildingUsage() = “FacilityForProvidingInternetComputerGameService”}Space mySpace{Space.usage = “PerformanceHall”OR Space.usage = “ReligiousAssemblyFacility ”OR Space.usage = “FacilityForProvidingInternetComputerGameService”}IF isExist(myBuilding) THEN mySpace.FloorSlab.area >= 300 m2}// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 1항 2호Check(EDBA_39_1_2){ KS}KS {Building myBuilding{getBuildingUsage() = “CulturalAndAssemblyFacility”getBuildingUsage() != “ExhibitionHall”getBuildingUsage() != “ZoologicalAndBotanicalGarden”}isExist(myBuliding) = TRUE}// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 1항 3호Check(EDBA_39_1_3){ KS}KS {Building myBuilding{getBuildingUsage() = “ReligiousFacility”}isExist(myBuliding) = TRUE}// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 1항 4호Check(EDBA_39_1_4){ KS}KS {Building myBuilding{getBuildingUsage() = “CommercialFacility”}isExist(myBuliding) = TRUE}// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 1항 6호Check(EDBA_39_1_6){ KS}KS {Building myBuilding{getBuildingUsage() = “AmusementFacility”}isExist(myBuliding) = TRUE}// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 1항 8호Check(EDBA_39_1_8){ KS}KS {Building myBuilding{getBuildingUsage() = “EducationAndResearchFacility.School”}isExist(myBuliding) = TRUE}// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 1항 9호Check(EDBA_39_1_9){ KS}KS {Building myBuilding{getBuildingUsage() = “FuneralParlor”}isExist(myBuliding) = TRUE}// 건축법 시행령 39조 (건축물 바깥쪽으로의 출구 설치) 2항Check(EDBA_39_2){ IF CS THEN KS}CS {Door myDoor {isObjectProperty(Door.isEntrance) = TRUEDoor.panelOperationType=“RevolvingDoor”}isExist(myDoor) = TRUE}KS {getResult(REFB_11_2)=TRUE}
//건축법 시행령 40조 (옥상광장 등의 설치) 3항 1호 Check(EDBA_40_3_1){ IF (CS) THEN KS } CS{ getObjectProperty(Roof.shapeType) = “FlatRoof” } KS{ isExist(Heliport) = True getResult(REFB_13_1)=True getResult(REFB_13_2)=True }//건축법 시행령 40조 (옥상광장 등의 설치) 3항 2호 Check(EDBA_40_3_2){ IF (CS) THEN KS } CS{ getObjectProperty(Roof.shapeType) = “PitchedRoof ” } KS{ Space mySpace{ Space.isEscape = TRUE } isExist(mySpace) = True getObjectProperty(mySpace.Roof.shapeType) = “PitchedRoof” getResult(REFB_13_3)=True }//건축법 시행령 40조 (옥상광장 등의 설치) 4항Check(EDBA_40_4){ IF (CS1) THEN KS1 ELSE IF (CS2) THEN KS2}CS1{ getResult(EDBA_40_3_1)=True }KS1{ getResult(REFB_13_1)=True getResult(REFB_13_2)=True }CS2{ getResult(EDBA_40_3_2)=True}KS2{ getResult(REFB_13_3)=True}//건축법 시행령 40조 (옥상광장 등의 설치) 1항check(EDBA_40_1){ IF (CS) THEN KS}CS{ Space myBalcony { getSpace(“Balconly”) Space.Floor.number >= 2 } Space mySpace{ getSpace(“RoofTopPlaza”) + getSpace(myBalcony) } isAccessible(mySpace) = TRUE}KS{ hasElement(mySpace, Railing) = TRUE mySpace.Rail.height >= 1.2m}//건축법 시행령 40조 (옥상광장 등의 설치) 2항 Check(EDBA_40_2){ IF (CS) THEN KS } CS{ Floor myFloor{ getObjectUsage(Floor) = “ClassIINeighborhoodLivingFacility.PerformanceHall“ OR getObjectUsage(Floor) = "ClassIINeighborhoodLivingFacility.ReligiousAssemblyFacility" OR getObjectUsage(Floor)= "ClassIINeighborhoodLivingFacility.FacilityForProvidingInternetComputerGameService“//건축법 시행령 40조 (옥상광장 등의 설치) 3항Check(EDBA_40_3){ IF (CS) THEN KS }CS{ Floor myFloor{ Floor.number > 11 } getBuildingStoriesCount() > 11 getTotalFloorArea(myFloor) > 10000m2}KS{ getResult(EDBA_40_3_1) = True getResult(EDBA_40_3_2) = True}
Check(EDBA_41_1_1){getresult(EDBA_41_1_1_가) =True getresult(EDBA_41_1_1_나) =True getresult(EDBA_41_1_1_다) =True }Check(EDBA_41_1_1){ IF (CS) THEN KS END IF }CS{getObjectProperty(Building.usage)="DetachedHouse"}KS{ getObjectProperty(Passage.effectiveWidth)> 0.9M}Check(EDBA_41_1_3){IF (CS) THEN KS END IF}CS{Building.usage !="DetachedHouse"OR Building.usage !="CulturalAndAssemblyFacility" OR Building.usage !="ReligiousFacility" OR Building.usage !="MedicalFacility" OR Building.usage !="AmusementFacility" OR Building.usage !="FuneralParlor" }KS{ getObjectProperty(Passage.effectiveWidth)> 1.5m ;}Check(EDBA_41_1){ KS}KS{ Door myDoor {getObjectProperty(Door.functionType) = "Main" } Stair myStair{isAccessible(Stair, Ground) = TRUEisObjectProperty(Stair.isEscape) = TRUE OR isObjectProperty(Stair.isSpecialEscape) = TRUE } Passage myPassage{ isGoThrough(myStair, Road, Passage)=True OR isGoThrough(myStair, OpenSpace, Passage )=True } isExist(myDoor)=True isExist(myPassage)=True getResult(EDBA_41_1_1)=True getResult(EDBA_41_1_2)=True getResult(EDBA_41_1_3)=True}Check(EDBA_41_1_2){ IF (CS) THEN KS END IF}CS{FloorSlab.area> 500 m2 Building.usage="CulturalAndAssemblyFacility" OR Building.usage="ReligiousFacility" OR Building.usage="MedicalFacility" OR Building.usage="AmusementFacility" OR Building.usage="FuneralParlor" }KS{ Passage.effectiveWidth> 3m ;}
//건축법 시행령 44조 (피난 규정의 적용례) Check(EDBA_44){ IF CS THEN KS } CS{ Door myDoor{ isObjectProperty(Door.isEntrance)=True } Object myElement { getObject(Window) getObject(Opening) getObject(myDoor) } FloorSlab myFloorSlab{ getObjectProperty(FloorSlab.isFireResistantStructure)=True } Wall myWall{ getObjectProperty(FloorSlab.isFireResistantStructure)=True hasObject(Wall, myElement) =False } isFirePartition(Building, myFloorSlab)=True OR isFirePartition(Building, myWall)=True } KS{ getResult(EDBA_34)=True getResult(EDBA_35)=True getResult(EDBA_36)=True getResult(EDBA_37)=True getResult(EDBA_38)=True getResult(EDBA_39)=True getResult(EDBA_40)=True getResult(EDBA_41)=True }
//건축법 시행령 46조 (방화구획의 설치) 5항 1호Check(EDBA_46_5_1){CS}CS{ isObjectProperty(Wall.isPartitionWall)=TRUE AND isObjectProperty(Wall.isLightWeightStructure)=TRUE}//건축법 시행령 46조 (방화구획의 설치) 5항 2호 Check(EDBA_46_5_2){CS } CS{ Opening myOpening{ Opening.isEscape = TRUE } Wall myWall{ isObjectProperty(Wall.isPartitionWall)=TRUE } AND hasObject(myWall,myOpening)=TRUE }//건축법 시행령 46조 (방화구획의 설치) 5항 3호Check(EDBA_46_5_3){CS}CS{AND getResult(REFB_14_3)=TRUE}//건축법 시행령 46조 (방화구획의 설치) 4항 1호 check(EDBA_46_4_1){ KS } KS{ Space mySpace{ isObjectProperty(Space.isEscape) = TRUE } isConnectedToExternal(mySpace)=TRUE }//건축법 시행령 46조 (방화구획의 설치) 4항 2호 check(EDBA_46_4_2){ KS } KS{ Space mySpace{ isObjectProperty(Space.isEscape) = TRUE } isObjectProperty(mySpace.isFirePartition)=TRUE }//건축법 시행령 46조 (방화구획의 설치) 1항 Check(EDBA_46_1){ IF (!CS1 AND CS2) THEN KS } CS1{ getBuildingUsage()="NuclearReactorAndRelatedFacility" } CS2{ (isObjectProperty(MainStructuralPart.isFireResistantStructure)=TRUE OR isObjectProperty(MainStructuralPart.Material.nonCombustibility)=TRUE)) AND Building.grossFloorArea>1000 m2 } KS{ Floor myFloor{ isObjectProperty(FloorSlab.isFireResistantStructure)=TRUE } Wall myWall{ isObjectProperty(Wall.isFireResistantStructure)=TRUE } Door myDoor{ isObjectProperty(Door.isStrictFireproofDoor)=TRUE } isFirePartition(Building, myFloor)=TRUE AND isFirePartition(Building, myWall)=TRUE AND isFirePatrition(Building, myDoor)=TRUE AND getResult(REFB_14_1)=TRUE AND getResult(REFB_14_2)=TRUE AND getResult(REFB_14_3)=TRUE }//건축법 시행령 46조 (방화구획의 설치) 2항check(EDBA_46_2){IF CS THEN KS}KS{ getResult(EDBA_46_1)=FALSE}CS{getResult(EDBA_46_2_2)=TRUEOR getResult(EDBA_46_2_3)=TRUEOR getResult(EDBA_46_2_4)=TRUEOR getResult(EDBA_46_2_5)=TRUEOR getResult(EDBA_46_2_6)=TRUEOR getResult(EDBA_46_2_7)=TRUE }//건축법 시행령 46조 (방화구획의 설치) 2항 2호 check(EDBA_46_2_2){ IF CS THEN KS } KS{ isExist(StationaryLargeComponent)=TRUE } CS{ Floor myFloor{ getFloorNumber()<0 } AND isAccessible(myFloor, Ground) = TRUE }//건축법 시행령 46조 (방화구획의 설치) 2항 3호 check(EDBA_46_2_3){ KS } KS{ isObjectProperty(Stair.Space.isFirePartition)=TRUE OR isObjectProperty(Passage.isFirePartition)=TRUE OR isObjectProperty(ElevatorShaft.isFirePartition)=TRUE }//건축법 시행령 46조 (방화구획의 설치) 2항 4호 check(EDBA_46_2_4){ KS } KS{ Floor myFloor{ getObject(TopFloor) OR isObjectProperty(Floor.isEscape)=TRUE } AND (getSpaceUsage(myFloor.Space)="ConferenceRoom" OR getSpaceUsage(myFloor.Space)="Hall" OR getSpaceUsage(myFloor.Space)="SkyLounge" OR getSpaceUsage(myFloor.Space)="Lobby" OR isObjectProperty(Zone.isEgressSafetyZone)= TRUE }//건축법 시행령 46조 (방화구획의 설치) 2항 5호check(EDBA_46_2_5){ Zone myZone{ isObjectProperty(Zone.isOccupiedByOneHousehold) = TRUE } getBuildingUsage() = "DuplexMultiUnitHouses" hasSpace(myZone, Floor) = TRUE getFloorNumber(Floor) != 1}//건축법 시행령 46조 (방화구획의 설치) 2항 6호 check(EDBA_46_2_6){ KS } KS{ isObjectProperty(MainStructuralPart.isFireResistantStructure)=TRUE AND isObjectProperty(MainStructuralPart.Material.nonCombustibility)=TRUE AND getSpaceUsage()=ParkingLot }//건축법 시행령 46조 (방화구획의 설치) 2항 7호 check(EDBA_46_2_7){ KS } KS{ getBuildingUsage()="DetachedHouses" OR getBuildingUsage()="FacilitiesForAnimalsAndPlants" OR (getBuildingUsage()="CorrectionalFacilityANDMilitaryFacilities" and (getSpaceUsage()= "Assembly" OR "Gymnasium" OR "Warehouses") }//건축법 시행령 46조 (방화구획의 설치) 3항check(EDBA_46_3){KS}KS{getResult(BA_50_1)=TRUEAND isGroupedFirePartition()=TRUE}//건축법 시행령 46조 (방화구획의 설치) 4항 check(EDBA_46_4){ IF CS THEN KS1 AND KS2 } Zone myZone{ isObjectProperty(Zone.isOccupiedByOneHousehold) = TRUE } KS1{ Space mySpace{ Space.isEscape = TRUE } isExist(Balcony)=TRUE AND hasElement(Balcony,mySpace)=TRUE AND (getResult(EDBA_46_4_1)=TRUE AND getResult(EDBA_46_4_2)=TRUE AND getResult(EDBA_46_4_3)=TRUE AND getResult(EDBA_46_4_4)=TRUE) } KS2{ Stair myStair{ Stair.isDirect = TRUE } isGoThrough(myZone,mySpace,myZone)=TRUE AND isGoThrough(mySpace,myZone,myStair)=TRUE } CS{ getBuildingUsage()="MultiUnitHouses.ApartmentHouses" AND Floor.number >=4 AND isDirectlyAccessible(myZone, myStair)=TRUE AND myStair.Number>=2 }//건축법 시행령 46조 (방화구획의 설치) 4항 3호check(EDBA_46_4_3)CS1{}CS2{}KS1{}KS2{}//건축법 시행령 46조 (방화구획의 설치) 5항 Check(EDBA_5){ CS } Space mySpace{ Space.isEscape = TRUE } CS{getObjectProperty(Building.usage)="ApartmentHouses" AND isExist(Balcony)=TRUE AND (hasObject(Balcony,Structure)=TRUE AND (getResult(EDBA_5_1)=TRUE or getResult(EDBA_5_2)=TRUE or getResult(EDBA_5_3)=TRUE) AND isExist(mySpace)=FALSE }
// 건축법 시행령 47조 (방화에 장애가 되는 용도의 제한) 1항 1호Check(EDBA_47_1_1){ KS}KS{ Space mySpace1{ getSpaceUsage(Space)="MultiUnitHouse.Dormitory" } Space mySpace2{ getSpaceUsage(Space)="Factory" } isExistTogether(mySpace1, mySpace2)=True }//건축법 시행령 47조 (방화에 장애가 되는 용도의 제한) 1항Check(EDBA_47_1){ IF !CS THEN KS}CS{ getResult(EDBA_47_1_1)=True OR getResult(EDBA_47_1_3)=True getResult(REFB_14-2)=True}KS{ Space mySpace1{ getSpaceUsage(Space)="MedicalFacility" OR getSpaceUsage(Space)="FacilitiesForTheAgedAndChildren.ChildrenRelatedFacility" OR getSpaceUsage(Space)="FacilitiesForTheAgedAndChildren.WelfareFacilityForTheAged" OR getSpaceUsage(Space)="MultiUnitHouse" } Space mySpace2{ getSpaceUsage(Space)="FuneralParlor" OR getSpaceUsage(Space)="AmusementFacility" OR getSpaceUsage(Space)="FacilityForStorageAndTreatmentOfDangerousSubstance" OR getSpaceUsage(Space)="Factory" OR getSpaceUsage(Space)="FacilityForMotorVehicle.AutomobileRepairShop" isExistTogether(mySpace1, mySpace2)=False } } //건축법 시행령 47조 (방화에 장애가 되는 용도의 제한) 1항 3호Check(EDBA_47_1_3){ KS}KS{ Space mySpace1{ getSpaceUsage(Space)="MultiUnitHouse" } Space mySpace2{ getSpaceUsage(Space)="AmusementFacility" } Building myBuilding{ isObjectProperty(Building.isHighriseBuilding)=True } isExistTogether(mySpace1, mySpace2, myBuilding)=True //다만, 주택의 출입구ㆍ계단 및 승강기 등을 주택 외의 시설과 분리된 구조로 하여야 한다.}//건축법 시행령 47조 (방화에 장애가 되는 용도의 제한) 2항 Check(EDBA_47_2){ KS } Space myFacility{ getResult(EDBA_47_2_1)=True } Space myFacility2{ OR getResult(EDBA_47_2_2)=True } KS{ isShared(myFacility.Building, myFacility2.Building)=False }//건축법 시행령 47조 (방화에 장애가 되는 용도의 제한) 2항 1호Check(EDBA_47_2_1){ KS}KS{ getBuildingUsage()="FacilitiesForTheAgedAndChildren.ChildrenRelatedFacility" OR getBuildingUsage()="FacilitiesForTheAgedAndChildren.WelfareFacilityForTheAged" OR getBuildingUsage()="CommercialFacility.WholesaleMarket" OR getBuildingUsage()="CommercialFacility.RetailMarket"}//건축법 시행령 47조 (방화에 장애가 되는 용도의 제한) 2항 2호 Check(EDBA_47_2_2){ KS } KS{ getBuildingUsage()="DetachedHouse.MultiUserHouse" OR getBuildingUsage()="DetachedHouse.MultiFamilyHouse" OR getBuildingUsage()="MultiUnitHouse" OR getBuildingUsage()="ClassINeighborhoodLivingFacility.MaternityCenter" OR getBuildingUsage()="ClassINeighborhoodLivingFacility.PostnatalCareCenter" OR getBuildingUsage()="ClassIINeighborhoodLivingFacility.CommunalLivingFacility" }
//건축법 시행령 48조 (계단ㆍ복도 및 출입구의 설치) 1항Check(EDBA_48_1){ IF CS THEN KS }CS{ getGrossFloorArea()>200 m2}KS{ getResult(REFB_15_1)=True getResult(REFB_15_1_1)=True getResult(REFB_15_1_2)=True getResult(REFB_15_1_3)=True getResult(REFB_15_1_4)=True getResult(REFB_15_2)=True getResult(REFB_15_2_1)=True getResult(REFB_15_2_2)=True getResult(REFB_15_2_3)=True getResult(REFB_15_2_4)=True getResult(REFB_15_2_5)=True getResult(REFB_15_2_6)=True getResult(REFB_15-2_1)=True getResult(REFB_15-2_2)=True getResult(REFB_15-2_2_1)=True getResult(REFB_15-2_2_2)=True getResult(REFB_15-2_2_3)=True getResult(REFB_15-2_3)=True getResult(REFB_15-2_3_1)=True getResult(REFB_15-2_3_2)=True}//건축법 시행령 48조 (계단ㆍ복도 및 출입구의 설치)2항Check(EDBA_48_2){ IF CS THEN KS }CS{ getResult(EDBA_39_1_1)=True OR getResult(EDBA_39_1_2)=True OR getResult(EDBA_39_1_3)=True OR getResult(EDBA_39_1_4)=True OR getResult(EDBA_39_1_5)=True OR getResult(EDBA_39_1_6)=True OR getResult(EDBA_39_1_7)=True OR getResult(EDBA_39_1_8)=True OR getResult(EDBA_39_1_9)=True OR getResult(EDBA_39_1_10)=True}KS{ getResult(REFB_11_1)=True getResult(REFB_11_2)=True getResult(REFB_11_3)=True getResult(REFB_11_4)=True getResult(REFB_11_5)=True getResult(REFB_11_6)=True}
// 건축법 시행령 50조 (거실반자의 설치)check(EDBA_50){ IF (CS) THEN KS}CS{ Building.usage != "Factory" OR Building.usage != "Warehouse" OR Building.usage != "FacilityForStorageAndTreatmentOfDangerousSubstance" OR Building.usage != "FacilityForAnimalAndPlant" OR Building.usage != "ResourceRecyclingFacility" OR Building.usage != "CemeteryAndRelatedFacility"}KS{ getResult(REFB_16_1) = TRUE getResult(REFB_16_2) = TRUE}
//건축법 시행령 51조 (거실의 채광 등) 2항 1호Check(EDBA_51_2_1){ KS1 OR KS2} KS1{ Space mySpace{ getBuildingUsage() = "ClassIINeighborhoodLivingFacility.PerformanceHall" OR getBuildingUsage() = "ClassIINeighborhoodLivingFacility.ReligiousAssemblyFacility" OR getBuildingUsage() = "ClassIINeighborhoodLivingFacility.FacilityForProvidingInternetComputerGameService" } getFloorArea(mySpace) >= 300 m2}KS2{ getBuildingUsage() = "ClassIINeighborhoodLivingFacility.CommunalLivingFacilities"}//건축법 시행령 51조 (거실의 채광 등) 2항 2호Check(EDBA_51_2_2){ getBuildingUsage() = "CulturalAndAssemblyFacility"}//건축법 시행령 51조 (거실의 채광 등) 2항 3호Check(EDBA_51_2_3){ getBuildingUsage() = "ReligiousFacility"}Check(EDBA_51_2_4){ getBuildingUsage()="CommercialFacility" }//건축법 시행령 51조 (거실의 채광 등) 2항 5호Check(EDBA_51_2_5){ getBuildingUsage() = "TransportationFacility"}//건축법 시행령 51조 (거실의 채광 등) 2항 6호Check(EDBA_51_2_6){ getBuildingUsage() = "MedicalFacility"}//건축법 시행령 51조 (거실의 채광 등) 2항 7호Check(EDBA_51_2_7){ getBuildingUsage() = "EducationAndResearchFacility.Laboratory"}//건축법 시행령 51조 (거실의 채광 등) 2항 8호Check(EDBA_51_2_8){ getBuildingUsage() = "FacilitiesForTheAgedAndChildren.ChildrenRelatedFacilities" OR getBuildingUsage() = "FacilitiesForTheAgedAndChildren.WelfareFacilitiesForTheAged"}//건축법 시행령 51조 (거실의 채광 등) 2항 9호Check(EDBA_51_2_9){ getBuildingUsage() = "Trainingfacility.YouthHostels"}//건축법 시행령 51조 (거실의 채광 등) 2항 10호Check(EDBA_51_2_10){ getBuildingUsage() = "SportsFacility"}//건축법 시행령 51조 (거실의 채광 등) 2항 11호Check(EDBA_51_2_11){ getBuildingUsage() = "BusinessFacility"}//건축법 시행령 51조 (거실의 채광 등) 2항 12호Check(EDBA_51_2_12){ getBuildingUsage() = "LodgingFacility"}//건축법 시행령 51조 (거실의 채광 등) 2항 13호Check(EDBA_51_2_13){ getBuildingUsage() = "AmusementFacility"}//건축법 시행령 51조 (거실의 채광 등) 2항 14호Check(EDBA_51_2_14){ getBuildingUsage() = "FacilityForTourismAndRelaxation"}//건축법 시행령 51조 (거실의 채광 등) 2항 15호Check(EDBA_51_2_15){ getBuildingUsage() = "FuneralParlors"}// 건축법 시행령 51조 (거실의 채광 등) 1항check(EDBA_51_1){ IF CS THEN KS}CS{ getBuildingUsage() = "DetachedHouse.Room" OR getBuildingUsage() = "MultiUnitHouse.Room" OR getBuildingUsage() = "School.Classroom" OR getBuildingUsage() = "MedicalFacility.Ward" OR getBuildingUsage() = "LodgingFacility.GuestRoom"}KS{ hasElement(Window) = TRUE}//건축법 시행령 51조 (거실의 채광 등) 2항Check(EDBA_51_2){ IF (!CS1 AND CS2) THEN KS}CS1{ Floor myFloor{ isObjectProperty(Floor.isEscape) = TRUE } getFloorNumber(Room) = getFloorNumber(myFloor)}CS2{ getBuildingStoriesCount() >= 6 getResult(EDBA_51_2_1) = True OR getResult(EDBA_51_2_2) = True OR getResult(EDBA_51_2_3) = True OR getResult(EDBA_51_2_4) = True OR getResult(EDBA_51_2_5) = True OR getResult(EDBA_51_2_6) = True OR getResult(EDBA_51_2_7) = True OR getResult(EDBA_51_2_8) = True OR getResult(EDBA_51_2_9) = True OR getResult(EDBA_51_2_10) = True OR getResult(EDBA_51_2_11) = True OR getResult(EDBA_51_2_12) = True OR getResult(EDBA_51_2_13) = True OR getResult(EDBA_51_2_14) = True OR getResult(EDBA_51_2_15) = True}KS{ hasSpace(Room, SmokeExhaustionSystem) = True getResult(RFB_14_1) = True getResult(REFB_17_1) = True getResult(REFB_17_2) = True}// 건축법 시행령 51조 (거실의 채광 등) 3항check(EDBA_51_3){ IF CS THEN KS}CS{Window myWindow{getObjectProperty(Window.panelOperationType) = "SwingingWindow"} getBuildingUsage() = "Officetels.Room" getElementHeight(myWindow) <= 1.2 m}KS{ isExist(FallPreventionSafetyFacility) = TRUE getResult(REFB_17_4) = TRUE}
//건축법 시행령 52조 (거실 등의 방습) 1호 Check(EDBA_52_0_1){ CS} CS{ hasObject(BottomFloor, Room) = TRUE getObjectProperty(FloorSlab.Structure.materialType) = "Timber" }//건축법 시행령 52조 (거실 등의 방습) 2호 Check(EDBA_52_0_2){ KS } KS{ Building myBuilding1{ Building.usage = "ClassiNeighborhoodLivingFacilites.BathHouse" } Building myBuilding2{ Building.usage = "ClassiNeighborhoodLivingFacilites" OR "RestingRestaurant" } getSpaceUsage(myBuilding1.Space)="BathRoom" getSpaceUsage(myBuilding2.Space)="Kitchen" }//건축법 시행령 52조 (거실 등의 방습) 3호 Check(EDBA_52_0_3){ KS } KS{ Building myBuilding1{ Building.usage = "ClassiiNeighborhoodLivingFacilites.Restaurant" OR "ClassiiNeighborhoodLivingFacilites.RestingRestaurant" OR "ClassiiNeighborhoodLivingFacilites.Bakery" } Building myBuilding2{ Building.usage = "ClassiiNeighborhoodLivingFacilites.LodgingFacility" } getSpaceUsage(myBuilding1.Space)="Kitchen" getSpaceUsage(myBuilding2.Space)="BathRoom" }//건축법 시행령 52조 (거실 등의 방습)Check(EDBA_52){IF CS THEN KS}CS{ getResult(EDBA_52_0_1)=TRUE OR getResult(EDBA_52_0_2)=TRUE OR getResult(EDBA_52_0_3)=TRUE getObject(Floor)}KS{ getResult(REFB_18_1)=TRUE AND getResult(REFB_18_2)=TRUE}
// 건축법 시행령 53조 (경계벽 등의 설치) 1항 2호 check(EDBA_53_1_1){ KS } KS{ Space mySpace1{ Space.Building.usage = “MultiUnitHouse.Dormitory” Space.name = “BedRoom” } Space mySpace1_1{ Space.Building.usage = “MultiUnitHouse.Dormitory” Space.name != “BedRoom” } Space mySpace2{ Space.Building.usage = “MedicalFacility” Space.name = “Ward” } Space mySpace2_1{ Space.Building.usage = “MedicalFacility” Space.name != “Ward” } Space mySpace3{ Space.Building.usage = “EducationAndResearchFacility.School” Space.name = “ClassRoom” } Space mySpace3_1{ Space.Building.usage = “EducationAndResearchFacility.School” Space.name != “ClassRoom” } Space mySpace4{ Space.Building.usage = “LodgingFacility” Space.name = “GuestRoom” } Space mySpace4_1 Space.Building.usage = “LodgingFacility” Space.name != “GuestRoom” } Wall myWall1{ isObjectProperty(Wall.isPartitionWall)=TRUE hasObject(mySpace1, Wall) =TRUE } Wall myWall2{ isObjectProperty(Wall.isPartitionWall)=TRUE hasObject(mySpace2, Wall) =TRUE } Wall myWall3{ isObjectProperty(Wall.isPartitionWall)=TRUE hasObject(mySpace3, Wall) =TRUE } Wall myWall4{ isObjectProperty(Wall.isPartitionWall)=TRUE hasObject(mySpace4, Wall) =TRUE } (hasObject(mySpace1, myWall) =TRUE hasObject(mySpace1_1, myWall) =FALSE) OR (hasObject(mySpace2, myWall) =TRUE hasObject(mySpace2_1, myWall) =FALSE) OR (hasObject(mySpace3, myWall) =TRUE hasObject(mySpace3_1, myWall) =FALSE) OR (hasObject(mySpace4, myWall) =TRUE hasObject(mySpace4_1, myWall) =FALSE) }// 건축법 시행령 53조 (경계벽 등의 설치) 1항 3호 check(EDBA_53_1_3){ KS } KS{ Space mySpace1{ Space.Building.usage = “ClassIINeighborhoodLivingFacility.CommunalLivingFacility” } Wall myWall{ isObjectProperty(Wall.isPartitionWall)=TRUE hasObject(mySpace1, Wall) =TRUE } isObjectProperty(myWall.isSharedByHouseholds) = TRUE }// 건축법 시행령 53조 (경계벽 등의 설치) 1항 4호check(EDBA_53_1_4){ KS}KS{Building myBuilding{Zone.Building.usage = “FacilitiesForTheAgedAndChildren.WelfareFacilityForTheAged ”getResult(WOPA_32_1_3)=TRUE}Wall myWall{isObjectProperty(Wall.isPartitionWall)=TRUEhasObject(myBuilding, Wall) =TRUE}isObjectProperty(myWall.isSharedByHouseholds) = TRUE}//건축법 시행령 53조 (경계벽 등의 설치) 2항 1호Check(EDBA_53_2_1){ KS}KS{ getBuildingUsage()="DetachedHouse.MultiFamilyHouse"} //건축법 시행령 53조 (경계벽 등의 설치) 2항 3호Check(EDBA_53_2_3){ KS}KS{ getBuildingUsage()="BusinessFacility.Officetel" } //건축법 시행령 53조 (경계벽 등의 설치) 2항 4호Check(EDBA_53_2_4){ KS}KS{ getBuildingUsage()="ClassIINeighborhoodLivingFacility.CommunalLivingFacility" } //건축법 시행령 53조 (경계벽 등의 설치) 2항 5호Check(EDBA_53_2_5){ KS}KS{ getBuildingUsage()="LodgingFacility.CommunalLivingFacility" } // 건축법 시행령 53조 (경계벽 등의 설치) 1항check(EDBA_53_1){ IF CS THEN KS}CS{ getResult(EDBA_53_1_1) = TRUE OR getResult(EDBA_53_1_2) = TRUE OR getResult(EDBA_53_1_3) = TRUE OR getResult(EDBA_53_1_4) = TRUE}KS{ getResult(REFB_19_1)=True getResult(REFB_19_2)=True}// 건축법 시행령 53조 (경계벽 등의 설치) 1항 1호 check(EDBA_53_1_1){ KS } KS{ Zone myZone1{ Zone.Building.usage = “DetachedHouse.MultiFamilyHouse ” } Zone myZone2{ Zone.Building.usage = “MultiUnitHouse” } Balcony myBalcony{ Balcony.usage != “BedRoom” Balcony.usage != “LivingRoom” } Wall myWall1{ isObjectProperty(Wall.isPartitionWall)=TRUE hasObject(myZone1.Household, Wall) =TRUE hasObject(myBalcony,Wall) =FALSE } Wall myWall1{ isObjectProperty(Wall.isPartitionWall)=TRUE hasObject(myZone2.Household, Wall) =TRUE hasObject(myBalcony,Wall) =FALSE } isExist(myWall1)=TRUE isExist(myWall2)=TRUE }test//건축법 시행령 53조 (경계벽 등의 설치) 2항 Check(EDBA_53_2){ IF CS THEN KS}CS{ getResult(EDBA_53_2_1)=True OR getResult(EDBA_53_2_2)=True OR getResult(EDBA_53_2_3)=True OR getResult(EDBA_53_2_4)=True OR getResult(EDBA_53_2_5)=True }KS{ getResult(REFB_19_3)=True}//건축법 시행령 53조 (경계벽 등의 설치) 2항 2호Check(EDBA_53_2_2){ KS}KS{ getBuildingUsage()="MultiUnitHouse" getResult(Unimplemented_HA_16)=False}
//건축법 시행령 56조 (건축물의 내화구조) 1항 1호 check(EDBA_56_1_1){ KS } Space mySpace{ Space.usage = "Auditorium " isExternal(Space) = TRUE } KS { (getBuildingUsage() = "PerformanceHall" | "ReligiousAssemblyFacility" AND getFloorArea(getSpace("PerformanceHall" | “ReligiousAssemblyFacility”)) > = 300m2;) OR (getBuildingUsage() = "CulturalAndAssemblyFacility" AND getBuildingUsage() != "ExhibitionHall" | "ZoologicalAndBotanicalGarden" OR (getBuildingUsage() = "ReligiousFacility" | "BarBusiness" | "FuneralParlor" AND getFloorArea(getSpace(“Seat” | “AssemblyHall”) > = 200m2 OR getFloorArea(mySpace) > = 1000m2;) }//건축법 시행령 56조 (건축물의 내화구조) 1항 2호 check(EDBA_56_1_2){ KS } KS{ (getBuildingUsage() = "ExhibitionHall" | "ZoologicalANDbotanicalGarden" | "CommercialFacility" | "TransportationFacilities" | "gymnasium.educationAndresearchFacilities" | "hall.educationAndresearchFacilities" | "gymnasium" | "sportsfacilities.stadium" | "sports facilities.warehouses" | "factory.facilitiesForStorageAndreatmentOfDangerousSubstance" | "factory.facilitiesForMotorVehicles" | "facilitiesforbroadcastingAndTelecommunications.broadcastingStation" | "facilitiesforbroadcasting andtelecommunications.telegraphAndTelephoneStations" | "facilitiesforbroadcasting and telecommunications.studio" | "cemeteries and relatedfacilities.Crematorium | "facilitiesfortourismandrelaxation" OR (getBuildingUsage() = "amusementfacilities" AND getBuildingUsage() != "barbusiness.amusementfacilities")) AND getFloorArea(getSpace(getBuildingUsage()) > = 500m2)) }//건축법 시행령 56조 (건축물의 내화구조와 방화벽) 1항 3호check(EDBA_56_1_3){ IF !(CS) THEN KS}CS{ getResult(REFB_20-2) = TRUE}KS{ Floor myFloor{ getObjectUsage(Floor) = "Factory" } getTotalFloorArea(myFloor.Space) >= 2000 m2}//건축법 시행령 56조 (건축물의 내화구조와 방화벽) 1항 4호check(EDBA_56_1_4){ Floor myFloor{ getFloorNumber = 2 getObjectUsage(Floor) = "DetachedHouse.MultiUserHouse" OR getObjectUsage(Floor) = "DetachedHouse.MultiFamilyHouse" OR getObjectUsage(Floor) = "DetachedHouse.MultiFamilyHouse" OR getObjectUsage(Floor) = "MultiUnitHouse" OR getObjectUsage(Floor) = "ClassINeighborhoodLivingFacility.MedicalFacility" OR getObjectUsage(Floor) = "ClassIINeighborhoodLivingFacility.CommunalLivingFacility" OR getObjectUsage(Floor) = "MedicalFacility" OR getObjectUsage(Floor) = "FacilitiesForTheAgedAndChildren.ChildrenRelatedFacility" OR getObjectUsage(Floor) = "FacilitiesForTheAgedAndChildren.WelfareFacilityForTheAged " OR getObjectUsage(Floor) = "Trainingfacility.YouthHostel" OR getObjectUsage(Floor) = "BusinessFacility.Officetel" OR getObjectUsage(Floor) = "LodgingFacility" OR getObjectUsage(Floor) = "FuneralParlor" } getFloorArea(myFloor) >= 400 m2}//건축법 시행령 56조 (건축물의 내화구조) 2항 check(EDBA_56_2){ IF (!CS1 AND CS2) THEN !KS CS1{ getResult(EDBA_56_1_1)=TRUE AND getResult(EDBA_56_1_2)=TRUE } CS2{ getObjectMaterialType(RoofTruss)= "NonCombustibleMaterial" } KS{ isFireResistantStructure(RoofTruss) = TRUE }//건축법 시행령 56조 (건축물의 내화구조) 1항 check(EDBA_56_1){ IF !CS THEN KS } Space mySpace{ Space.usage="StagePart" } Floor myFloor{ hasSpace(mySpace, Floor) = TRUE } CS { getTotalFloorArea()<= 50m2 AND getBuildingStoriesCount()=1 AND getBuildingUsage()="AccessoryBuidling" AND isFireProofStructure("OuterWall" | "eaves" | myFloor)=TRUE } KS { getResult(EDBA_56_1_1 = TRUE OR getResult(EDBA_56_1_2) = TRUE OR getResult(EDBA_56_1_3) = TRUE OR getResult(EDBA_56_1_4) = TRUE OR getResult(EDBA_56_1_5) = TRUE AND isFireProofStructure(MainStructuralPart) = TRUE }//건축법 시행령 56조 (건축물의 내화구조) 1항 5호 check(EDBA_56_1_5){ IF !CS THEN KS } Building myBuilding{ getBuildingUsage() = "PowerPlant" isObjectProperty(Building.isAttachedBuilding) = TRUE } Building myBuilding{ getResult(REFB_*_3_30) = TRUE getResult(REFB_*_3_31) = TRUE } CS{ getBuildingUsage() = "facilities for animals and plants" | "facilities for power generation" | "correctional facilities and military installations.prison" | "correctional facilities and military installations.reformatories | "myFactory" OR (getBuildingUsage() = "detached houses" AND getBuildingUsage() != "detached houses.multi-user houses" | "detached houses.multi-family houses" ) OR (getBuildingUsage() = "facilities for power generation" AND (getBuildingUsage() = "myBuilding" OR (getBuildingUsage() = "cemeteries and related facilities" AND getBuildingUsage() != "Crematorium") } KS{ Floor myFloor{ Floor.number < 0 } getBuildingStoriesCount() >= 3 AND isExist(myFloor) = TRUE }
// 건축법 시행령 57조 ( 대규모 건축물의 방화벽 등) 1항Check(EDBA_57_1){ IF (CS1 AND CS2) THEN KS}CS1{ getObjectProperty(MainStructuralPart.isFireResistantStructure) = TRUE OR getObjectProperty(MainStructuralPart.Material.nonCombustibility) = TRUE OR getResult(EDBA_56_1_5) = TRUE}CS2{ getObjectProperty(Building.grossFloorArea) >= 1000m2}KS{ Space mySpace{ getFloorArea(Space) < 1000m2 } Space mySpace2{ Space != mySpace } Wall myWall{ isObjectProperty(Wall.isFireProofWall) = TRUE } isPartitioned(mySpace, mySpace2, myWall) = TRUE}check(EDBA_57_2){ KS}KS{ getResult(REFB_21_1) = TRUE }// 건축법 시행령 57조 (대규모 건축물의 방화벽 등) 3항 Check(EDBA_57_3){ IF CS THEN KS } CS{ getObjectProperty(Building.grossFloorArea) >= 1000m2 getObjectProperty(Building.Structure.materialType) = "Timber" } KS{ getObjectProperty(MainStructuralPart.Material.nonCombustibility) = TRUE OR getObjectProperty(MainStructuralPart.isFireProofStructure) = TRUE }
check(EDBA_58_0_1){ getGrossFloorArea() < 30m2; isObjectProperty(Building.isAttachedBuilding) = TRUE getBuildingStoriesCount() = 1; isFireResistantStructure(MainStructure) = TRUE OR isFireResistantStructure(ExternalWall) = TRUE; }check(EDBA_58_0_2){ getBuildingUsage() < "WholeSale Market" isFireResistantStructure(MainStructure) = TRUE }check(EDBA_58){ KS}KS{ getResult(EDBA_58_0_1) = TRUE; getResult(EDBA_58_0_2) = TRUE;}
Check(EDBA_61_1_4){IF !CS THEN KS}CS{getResult(EDBA_61_1_4_가)=PASSOR getResult(EDBA_61_1_4_나)=PASS OR getResult(EDBA_61_1_4_다)=PASS}KS{getBuildingUsage="Factory"}Check(EDBA_61_1_5){KS}Floor myFloor {Floor.number>=5}KS{getTotalfloorArea(myFloor)>=500 m2}//건축법 시행령 61조 (건축물의 마감재료) 1항7호Check(EDBA_61_1_7){ KS}KS{ Floor myFloor{ getObjectUsage(Floor)="Storage" } IF (isExist(SprinklerSystem)=TRUE OR isExist(ExtinguishingSystem.isAutomatic)=TRUE ) THEN getFloorArea(myFloor)>6000 m2 ELSE THEN getFloorArea(myFloor)>3000 m2}// 건축법 시행령 61조 (건축물의 마감재료) 2항 1호Check(EDBA_61_2_1){ KS}KS{ getObjectProperty(Building.SpecialPurposeArea.type) = "CommercialArea" getResult(EDBA_61_2_1_가)=TRUE }Check(EDBA_61_1_3){KS}KS{getBuildingUsage()="FacilityForStorageAndTreatmentOfDangerousSubstance"OR getBuildingUsage()="FacilityForMotorVehicle"OR (getBuildingUsage()="FacilityForBroadcastingAndTelecommunication.BroadcastingStation"OR getBuildingUsage()="FacilityForBroadcastingAndTelecommunication.Studio"OR getBuildingUsage()="FacilityForBroadcastingAndTelecommunication.PowerPlant"}Check(EDBA_61_1_4_1){KS}KS{getResult(REFB_24-2_1)= TRUE}Check(EDBA_61_1_4_2){KS}KS{getResult(REFB_24-2_2)= TRUE }Check(EDBA_61_1_4_3){KS}KS{getResult(REFB_24-2_3)=TRUE }Check(EDBA_61_1_1){IF CS THEN KS}Floor myfloor1 { isObjectProperty(ClassIINeighborhoodLivingFacility.PerformanceHall)=TRUEOR isObjectProperty(ClassIINeighborhoodLivingFacility.ReligiousAssemblyFacility)=TRUEOR isObjectProperty(ClassIINeighborhoodLivingFacility.ReligiousAssemblyFacility)=TRUEAND getFloorArea()>=300}CS{isExist(myfloor1)=TRUEOR(getBuildingUsage()= "CulturalAndAssemblyFacility"AND getBuildingUsage()!= "CulturalAndAssemblyFacility.WeddingHall")OR getBuildingUsage()= "ReligiousFacility"OR getBuildingUsage()= "CommercialFacility"OR getBuildingUsage()= "TransportationFacility"OR (getBuildingUsage()= "AmusementFacility"OR (getBuildingUsage()!= "AmusementFacility.Pubs"AND getBuildingUsage()!= "AmusementFacility.BarBusiness")}KS{getFloorArea(Room)>=200m2OR (isObjectProperty(MainStructuralPart.isFireResistantStructure)=TRUEOR isObjectProperty(MainStructuralPart.Material.nonCombustibility)=TRUEgetFloorArea(Room)>=400m2}Check(EDBA_61_1_2){IF CS THEN KS1 OR KS2}Building myBuilding{getBuildingUsage()="DetachedHouse.Multi-userHouses"OR getBuildingUsage()="DetachedHouse.Multi-familyHouses" OR getBuildingUsage()="ClassIINeighborhoodLivingFacility.EducationalInstitute"OR getBuildingUsage()="ClassIINeighborhoodLivingFacility.ReadingRoomsOR getBuildingUsage()="ClassIINeighborhoodLivingFacility.CommunalLivingFacility OR getBuildingUsage()="ClassIINeighborhoodLivingFacility.LodgingFacility"OR getBuildingUsage()="ClassIINeighborhoodLivingFacility.MedicalFacility"OR getBuildingUsage()="EducationAndResearchFacility.EducationalInstitute"OR getBuildingUsage()="BusinessFacility.Oofficetels"OR getBuildingUsage()="FuneralParlors"}MBU = getObjectUsage(myBuilding)CS{getBuildingUsage() = MBUFloor myfloor{Floor.number>=3}KS1{(Floor.number>=3AND getTotalfloorarea(Room)>=200m2)KS2{isObjectProperty(MainStructuralPart.isFireResistantStructure)=TRUEOR isObjectProperty(MainStructuralPart.Material.nonCombustibility)=TRUEAND Floor.number>=3getTotalfloorarea(Room)>=200m2}//건축법 시행령 61조 (건축물의 마감재료) 2항Check(EDBA_61_2){ KS}KS{ getResult(EDBA_61_2_1)=TRUE OR getResult(EDBA_61_2_2)=TRUE}//건축법 시행령 61조 (건축물의 마감재료) 2항 1호 가목Check(EDBA_61_2_1_가){ KS }KS{ Building myBuilding{ getResult(SASP_2_1_1)=True } FloorSlab myFloorSlab{ // getFloorUsage()=myBuilding.usage } getObjectArea(myFloorSlab)>2000 m2 }// 건축법 시행령 61조 (건축물의 마감재료) 2항 2호Check(EDBA_61_2_2){ KS}KS{ getObjectProperty(Building.isHighriseBuilding) = TRUE OR getObjectProperty(Building.isQuasiHighriseBuilding) = TRUE}//건축법 시행령 61조 (건축물의 마감재료) 1항Check(EDBA_61_1){ IF !CS THEN KS}CS{ (isObjectProperty(MainStructuralPart.isFireResistantStructure)=TRUE OR isObjectProperty(MainStructuralPart.Material.nonCombustibility)=TRUE) isFirePartition(Room.Floor, a, 200)=TRUE }KS{ getResult(EDBA_61_1_1)=TRUE OR getResult(EDBA_61_1_2)=TRUE OR getResult(EDBA_61_1_3)=TRUE OR getResult(EDBA_61_1_4)=TRUE OR getResult(EDBA_61_1_5)=TRUE OR getResult(EDBA_61_1_6)=TRUE OR getResult(EDBA_61_1_7)=TRUE}Check(EDBA_61_1_6){KS}KS{(getBuildingUsage()="ClassIINeighborhoodLivingFacility.PerformanceHall"OR getBuildingUsage()="ClassIINeighborhoodLivingFacility.BilliardRoom")OR getBuildingUsage()="CulturalAndAssemblyFacility.WeddingHall"OR getBuildingUsage()="EducationAndResearchFacility.ElementarySchool"OR getBuildingUsage()="Trainingfacility"OR (getBuildingUsage()="AmusementFacility.BarBusiness"OR getResult(ERSASP_2)= TRUE)}
//건축법 시행령 8조 (건축허가) 3항 4호Check(EDBA_8_3_4){ KS}KS{ getBuildingUsage() = "LodgingFacility"}//건축법 시행령 8조 (건축허가) 3항Check(EDBA_8_3){ KS}KS{ getResult(EDBA_8_3_1)=True OR getResult(EDBA_8_3_2)=True OR getResult(EDBA_8_3_3)=True OR getResult(EDBA_8_3_4)=True OR getResult(EDBA_8_3_5)=True }//건축법 시행령 8조 (건축허가) 3항 2호Check(EDBA_8_3_2){ KS}KS{ getBuildingUsage() = "ClassIINeighborhoodLivingFacility.Restaurant"}//건축법 시행령 8조 (건축허가) 3항 3호Check(EDBA_8_3_3){ KS}KS{ getBuildingUsage() = "BusinessFacility.GeneralBusinessFacility"}//건축법 시행령 8조 (건축허가) 3항 1호Check(EDBA_8_3_1){ KS}KS{ getBuildingUsage() = "MultiUnitHouse"}//건축법 시행령 8조 (건축허가) 3항 5호Check(EDBA_8_3_5){ KS}KS{ getBuildingUsage() = "AmusementFacility"}
//건축법 시행령 80조 (건축물이 있는 대지의 분할제한) 1호Check(EDBA_80_1){ IF CS THEN KS}CS{ getBuildingUsage() = "ResidentialArea"}KS{ getObjectProperty(Building.Site.area) >= 60m2}//건축법 시행령 80조 (건축물이 있는 대지의 분할제한) 2호Check(EDBA_80_2){ IF CS THEN KS}CS{ getBuildingUsage() = "CommercialArea"}KS{ getObjectProperty(Building.Site.area) >= 150m2}//건축법 시행령 80조 (건축물이 있는 대지의 분할제한) 3호Check(EDBA_80_3){ IF CS THEN KS}CS{ getBuildingUsage() = "IndustrialArea"}KS{ getObjectProperty(Building.Site.area) >= 150m2}//건축법 시행령 80조 (건축물이 있는 대지의 분할제한) 4호Check(EDBA_80_4){ IF CS THEN KS}CS{ getBuildingUsage() = "GreenArea"}KS{ getObjectProperty(Building.Site.area) >= 200m2}//건축법 시행령 80조 (건축물이 있는 대지의 분할제한) 5호Check(EDBA_80_5){ IF CS THEN KS}CS{ getBuildingUsage() != "ResidentialArea" getBuildingUsage() != "CommercialArea" getBuildingUsage() != "IndustrialArea" getBuildingUsage() != "GreenArea"}KS{ getObjectProperty(Building.Site.area) >= 60m2}//건축법 시행령 80조 (건축물이 있는 대지의 분할제한) Check(EDBA_80){ KS}KS{ getResult(EDBA_80_1) = TRUE getResult(EDBA_80_2) = TRUE getResult(EDBA_80_3) = TRUE getResult(EDBA_80_4) = TRUE getResult(EDBA_80_5) = TRUE}
// 건축법 시행령 81조 (맞벽건축 및 연결복도) 3항Check(EDBA_81_3){ KS}KS{ getResult(EDBA_81_3_1) = TRUE getResult(EDBA_81_3_2) = TRUE}// 건축법 시행령 81조 (맞벽건축 및 연결복도) 3항 1호Check(EDBA_81_3_1){ KS}KS{ getObjectProperty(MainStructuralPart.isFireResistantStructure) = TRUE}// 건축법 시행령 81조 (맞벽건축 및 연결복도) 3항 2호Check(EDBA_81_3_2){ KS}KS{ getObjectProperty(Wall.Finish.Material.nonCombustibility) = TRUE}
//건축법 시행령 87조 (건축설비 설치의 원칙) 6항Check(EDBA_87_6){ IF CS THEN KS }CS{ getGrossFloorArea()>= 500 m2}KS{ getResult(RFB_20-2)=True}
//건축법 시행령 89조 (승용 승강기의 설치)Check(EDBA_89){ KS}KS{ Stair myStair{ isObjectProperty(Stair.isDirect) = TRUE } getBuildingStoriesCount() = 6 isExist(myStair) = TRUE}
//건축법 시행령 90조 (비상용 승강기의 설치) 1항Check(EDBA_90_1){ IF (!CS1 AND CS2) THEN KS}CS1{ getResult(BA_64_1)=TRUE isObjectProperty(Elevator.isEmergency)=TRUE }CS2{ getBuildingHeight()>31 m}KS{ getResult(EDBA_90_1_1)=TRUE getReslut(EDBA_90_1_2)=TRUE}//건축법 시행령 90조 (비상용 승강기의 설치) 1항 1호Check(EDBA_90_1_1){ IF CS THEN KS}CS{ Floor myFloor{ getObjectHeight(myFloor) > 31 m } getFloorArea(myFloor) <= 1500 m2}KS{ isExist(Elevator.isEmergency) = TRUE}//건축법 시행령 90조 (비상용 승강기의 설치) 1항2호Check(EDBA_1_2){ IF CS THEN KS} Floor myFloor{ getObjectHeight(Floor)>31 m }CS{ getFloorArea(myFloor)>1500 m2}KS{ FA=getFloorArea(myFloor) //FA means floor area IF FA>=4500 m2 THEN {(FA-1500)/3000}+1 < getObjectCount(EmergencyElevator) getObjectCount(EmergencyElevator) < {(FA-1500)/3000}+2 END IF }//건축법 시행령 90조 (비상용 승강기의 설치) 2항Check(EDBA_90_2){ KS}KS{ getObjectCount(Elevator.isEmergency) >= 2}//건축법 시행령 90조 (비상용 승강기의 설치) 3항Check(EDBA_90_3){ KS}KS{ getResult(RFB_14_2)=True }
// 장애인ㆍ노인ㆍ임산부 등의 편의증진보장에 관한 법률 시행령 3조 (대상시설)Check(EDCDAPA_3){KS}KS{getResult(EDCDAPA_*_1)=TRUE}
// 장애인ㆍ노인ㆍ임산부 등의 편의증진보장에 관한 법률 시행령 4조 (편의시설의 종류)Check(EDCDAPA_4){KS}KS{getResult(EDCDAPA_*_2)=TRUE}
// 장애인ㆍ노인ㆍ임산부 등의 편의증진보장에 관한 법률 시행령 별표1 편의시설 설치 대상시설(제3조 관련)Check(EDCDAPA_*_1_2_가_1){getBuildingUsage()=“RetailStore”Floor myFloor{ getFloorUsage(Floor)=”RetailStore”}getTotalFloorArea(myFloor)>=300 m2getTotalFloorArea(myFloor)<1000 m2}Check(EDCDAPA_*_1_2_가_2){Building myBuilding {getBuildingUsage()=“Barbershop”OR getBuildingUsage()=“BeautyShop”OR getBuildingUsage()=“Bathhouse”}Floor myFloor{ getFloorUsage(Floor)= myBuilding.usage}getTotalFloorArea(myFloor)>=500 m2}Check(EDCDAPA_*_1_2_가_3){Building myBuilding{getBuildingUsage()=“CommunityCenter”OR getBuildingUsage()=“PoliceBox”OR getBuildingUsage()=“PoliceSubstation”OR getBuildingUsage()=“PostOffice”OR getBuildingUsage()=“HealthCenter”OR getBuildingUsage()=“PublicLibrary”OR getBuildingUsage()=“NationalHealthInsuranceService_NationalPensionService_Korea EmploymentAgencyForTheDisabled_KoreaWorkersCompensationAndWelfareServiceOffice”}Floor myFloor{ getFloorUsage(Floor)= myBuilding.usage}getTotalFloorArea(myFloor)<1000 m2}Check(EDCDAPA_*_1_2_가_4){getBuildingUsage()=“Shelter”}Check(EDCDAPA_*_1_2_가_5){getBuildingUsage()=“PublicToilet”}Check(EDCDAPA_*_1_2_가_6){Building myBuilding{getBuildingUsage()=“Clinic_ DentalClinic_OrientalMedicalClinic_MaternityClinic”}Floor myFloor{ getFloorUsage(Floor)= myBuilding.usage}getTotalFloorArea(myFloor)>=500 m2}Check(EDCDAPA_*_1_2_가_7){getBuildingUsage()=“CommunityChildCenter”Floor myFloor{ getFloorUsage(Floor)= “CommunityChildCenter”}getTotalFloorArea(myFloor)>=300 m2}Check(EDCDAPA_*_1_2_나_1){getBuildingUsage()=“Restaurant”Floor myFloor{ getFloorUsage(Floor)= “CommunityChildCenter”}getTotalFloorArea(myFloor)>=300 m2}Check(EDCDAPA_*_1_2_나_2){Building myBuilding {(getBuildingUsage()=“RestingRestaurant”OR getBuildingUsage()=“Bakery”)getBuildingUsage() !=”ClassINeighborhoodLivingFacility”}Floor myFloor{ getFloorUsage(Floor)= myBuilding.usage}getTotalFloorArea(myFloor)>=300 m2}Check(EDCDAPA_*_1_2_나_2){getBuildingUsage()=“MassageParlor”Floor myFloor{ getFloorUsage(Floor)= “MassageParlor”}getTotalFloorArea(myFloor)>=500 m2}Check(EDCDAPA_*_1_2_카_1){getBuildingUsage()=“PublicOfficeBuilding. OfficeBuildingOfLocalGovernment ”getBuildingUsage() !=”ClassINeighborhoodLivingFacility”}Check(EDCDAPA_*_1_2_카_2){Building myBuilding{getBuildingUsage()=“GeneralBusinessFacility.FinanceBusiness”OR getBuildingUsage()=“GeneralBusinessFacility.Office”OR getBuildingUsage()=“GeneralBusinessFacility.NewspaperOffice”OR getBuildingUsage()=“GeneralBusinessFacility. Officetel”}Floor myFloor { getFloorUsage()=myBuilding.usage}getTotalFloorArea(myFloor)>=500 m2}Check(EDCDAPA_*_1_2_카_3){Building myBuilding{getBuildingUsage()=“GeneralBusinessFacility.NationalHealthInsuranceService_NationalPensionService_Korea EmploymentAgencyForTheDisabled_KoreaWorkersCompensationAndWelfareServiceOffice”}Floor myFloor { getFloorUsage()=myBuilding.usage}getTotalFloorArea(myFloor)>=1000 m2}
// 장애인ㆍ노인ㆍ임산부 등의 편의증진보장에 관한 법률 시행령 별표2 대상시설별 편의시설의 종류 및 설치기준(제4조관련)Check(EDCDAPA_*_2_3_가_2_가){IF CS1 AND CS2 THEN KS}ParkingLot myParkingLot{isObjectProperty(ParkingLot.isAttachedParking) = TRUE}CS1 {isExist(myParkingLot) = TRUE}CS2 {getObjectProperty(myParkingLot.numberOfParkingUnit) >= 10}KS1 {Area myArea{isObjectProperty(ParkingLotArea.isHandicapParking)=TRUE}hasSpace(myParkingLot, myArea) = TRUEgetResult(EDPA_*_1) = TRUE}Check(EDCDAPA_*_2_3_가_4_가){KS1 IF CS1 THEN KS2}Door myDoor1{ isObjectProperty(Door.isEntrance)=TRUE isObjectProperty(myDoor1.isHandicapAccessible)=TRUE}Door myDoor2{Door.Space.usage = “Office”isObjectProperty(myDoo2.isHandicapAccessible)=TRUE}KS1 {isExist(myDoor1) = TRUEisExist(myDoor2) = TRUE}CS1{Building.usage = “BusinessFacility.GovernmentOfficeBuilding”Building.usage != “ClassINeighborhoodLivingFacility”}KS2 {isObjectProperty(myDoor1.isAutomatic)=TRUEisObjectProperty(myDoo2.isAutomatic)=TRUE}ParkingLot myParkingLot{isObjectProperty(ParkingLotArea.isHandicapParking)=TRUE}Building myBuilding1_1{ Building.usage = “ClassINeighborhoodLivingFacility.RetailStore” Building.usage = “ClassINeighborhoodLivingFacility.Barbershop” Building.usage = “ClassINeighborhoodLivingFacility.BeautyShop” Building.usage = “ClassINeighborhoodLivingFacility.Bathhouse”}Building myBuilding1_2{ Building.usage = “ClassINeighborhoodLivingFacility.CommunityCenter” Building.usage = “ClassINeighborhoodLivingFacility.PoliceBox” Building.usage = “ClassINeighborhoodLivingFacility.PoliceSubstation” Building.usage = “ClassINeighborhoodLivingFacility.PostOffice”Building.usage = “ClassINeighborhoodLivingFacility.HealthCenter” Building.usage = “ClassINeighborhoodLivingFacility.PublicLibrary” Building.usage = “ClassINeighborhoodLivingFacility.NationalHealthInsuranceService_NationalPensionService_Korea EmploymentAgencyForTheDisabled_KoreaWorkersCompensationAndWelfareServiceOffice”}Building myBuilding1_3{ Building.usage = “ClassINeighborhoodLivingFacility.Clinic_ DentalClinic_OrientalMedicalClinic_MaternityClinic”}Building myBuilding1_4{ Building.usage = “ClassINeighborhoodLivingFacility.CommunityChildCenter” Building.facilityArea >= 300 m2}Building myBuilding1_5{ Building.usage = “ClassINeighborhoodLivingFacility.Shelter”}Building myBuilding1_6{ Building.usage = “ClassINeighborhoodLivingFacility.PublicToilet”}Building myBuilding2_1{ Building.usage = “ClassIINeighborhoodLivingFacility.Restaurant” Building.usage = “ClassIINeighborhoodLivingFacility.RestingRestaurant” Building.usage = “ClassIINeighborhoodLivingFacility.Bakery” Building.usage != “ClassINeighborhoodLivingFacility”Building.facilityArea >= 300 m2}Building myBuilding2_2{ Building.usage = “ClassIINeighborhoodLivingFacility.MassageParlor”}Building myBuilding3_1{ Building.usage = “CulturalAndAssemblyFacility.PerformanceHall”Building.usage = “CulturalAndAssemblyFacility.Auditorium”}Building myBuilding3_2{ Building.usage = “CulturalAndAssemblyFacility.AssemblyHall”}Building myBuilding3_3{ Building.usage = “CulturalAndAssemblyFacility.ExhibitionHall”Building.usage = “CulturalAndAssemblyFacility.ZoologicalAndBotanicalGarden”}Building myBuilding4_1{ Building.usage = “ReligiousFacility.ReligiousAssemblyFacility” Building.facilityArea >= 500 m2}Building myBuilding5_1{ Building.usage = “CommercialFacility.WholesaleMarket” Building.usage = “CommercialFacility.RetailMarket” Building.usage = “CommercialFacility.Shop” Building.facilityArea >= 1000 m2}Building myBuilding6_1{ Building.usage = “MedicalFacility.Hospital” Building.usage = “MedicalFacility.DetentionHospital”}Building myBuilding7_1{ Building.usage = “EducationAndResearchFacility.School” Building.usage = “EducationAndResearchFacility.SpecialSchool” Building.usage != “EducationAndResearchFacility.Kindergarten”}Building myBuilding7_2{ Building.usage = “EducationAndResearchFacility.Kindergarten”}Building myBuilding7_3{ Building.usage = “EducationAndResearchFacility.TrainingInstitute” Building.usage = “EducationAndResearchFacility.VocationalTrainingCenter” Building.usage != “EducationAndResearchFacility.EducationalInstitute”Building.facilityArea >= 500 m2}Building myBuilding8_1{ Building.usage = “FacilitiesForTheAgedAndChildren.ChildrenRelatedFacility”Building.usage = “FacilitiesForTheAgedAndChildren.WelfareFacilityForTheAged”Building.usage = “FacilitiesForTheAgedAndChildren.SocialWelfareFacility”Building.usage = “경로당”Building.usage = “ResidentialFacilityForTheDisabled”Building.facilityArea >= 500 m2}Building myBuilding9_1{ Building.usage = “Trainingfacility.TrainingFacilityInLivingZone” Building.usage = “Trainingfacility.TrainingFacilityInNatureZone”}Building myBuilding10_1{ Building.usage = “SportsFacility”Building.facilityArea >= 500 m2}Building myBuilding11_1{ Building.usage = “BusinessFacility.GovernmentOfficeBuilding”Building.facilityArea >= 500 m2}Building myBuilding11_2{ Building.usage = “BusinessFacility.FinanceBusiness” Building.usage = “BusinessFacility.Office” Building.usage = “BusinessFacility.NewspaperOffice” Building.usage = “BusinessFacility.Officetel”Building.facilityArea >= 500 m2}Building myBuilding12_1{ Building.usage = “LodgingFacility.GeneralLodgingFacility”}Building myBuilding12_2{ Building.usage = “LodgingFacility.TouristAccommodation”}Building myBuilding13_1{ Building.usage = “Factory”}Building myBuilding14_1{ Building.usage = “FacilityForMotorVehicle.ParkingLot”Building.usage = “FacilityForMotorVehicle.DrivingSchool”}Building myBuilding15_1{ Building.usage = “FacilityForBroadcastingAndTelecommunication.BroadcastingStation”Building.facilityArea >= 1000 m2}Building myBuilding15_2{ Building.usage = “FacilityForBroadcastingAndTelecommunication.TelegraphAndTelephoneStation”Building.facilityArea >= 1000 m2}Building myBuilding16_1{ Building.usage = “CorrectionalFacilityAndMilitaryInstallation.Prison”Building.usage = “CorrectionalFacilityAndMilitaryInstallation.DetentionCenter”}Building myBuilding17_1{ Building.usage = “CemeteryAndRelatedFacility.CremationFacility” Building.usage = “CemeteryAndRelatedFacility.CharnelHouse” Building.usage != “ReligiousFacility”}Building myBuilding18_1{ Building.usage = “FacilityForTourismAndRelaxation.BandStand” Building.usage = “FacilityForTourismAndRelaxation.OutdoorTheater” Building.usage = “FacilityForTourismAndRelaxation.ChildrenCenter”}Building myBuilding18_2{ Building.usage = “FacilityForTourismAndRelaxation.RestArea”}Building myBuilding19_1{ Building.usage = “FuneralParlor”}Check(EDCDAPA_*_2_3_나){IF (CS1 THEN KS1) OR (CS2 THEN KS2)}CS1{Building myBuilding20_1 {getObject(myBuilding1_1 | myBuilding12_2)}KS1{hasSpace(myBuilding20_1, myParkingLot) = TRUE OR hasSpace(myBuilding20_1, myParkingLot) = FALSE}CS2{ Building myBuilding20_2 {getObject(myBuilding1_2 | myBuilding1_3 | myBuilding1_4 | myBuilding2_1 | myBuilding2_2 | myBuilding3_1 | myBuilding3_2 | myBuilding3_3 | myBuilding4_1 | myBuilding5_1 | Building myBuilding6_1 | Building myBuilding7_1 | myBuilding7_2 | myBuilding7_3 | myBuilding8_1 | myBuilding9_1 | myBuilding10_1 | myBuilding11_1 | myBuilding11_2 | myBuilding12_1 | myBuilding13_1 | myBuilding14_1 | myBuilding15_1 | myBuilding15_2 | myBuilding16_1 | myBuilding17_1 | myBuilding18_1 | myBuilding18_2 | myBuilding19_1) }KS2{hasSpace(Building20_2, myParkingLot) = TRUE}Check(EDCDAPA_*_2_3_나){IF CS THEN KSCS{Building myBuilding20_3{getObject(myBuilding1_1 | myBuilding1_2 | myBuilding1_3 | myBuilding1_4 | myBuilding1_5 | myBuilding1_6 | myBuilding2_1 | myBuilding2_2 | myBuilding3_1 | myBuilding3_2 | myBuilding3_3 | myBuilding4_1 | myBuilding5_1 | Building myBuilding6_1 | Building myBuilding7_1 | myBuilding7_2 | myBuilding7_3 | myBuilding8_1 | myBuilding9_1 | myBuilding10_1 | myBuilding11_1 | myBuilding11_2 | myBuilding12_1 | myBuilding13_1 | myBuilding14_1 | myBuilding15_1 | myBuilding15_2 | myBuilding16_1 | myBuilding17_1 | myBuilding18_1 | myBuilding18_2 | myBuilding19_1) }KS{isObjectProperty(myBuilding20_3.Door.isSillFree) = TRUE}
//주차장법 시행령 4조 (경형자동차 전용주차구획의 설치비율)ParkingLot myParkingLot{ isObjectProperty(ParkingLot.isOffStreetParking )=True }Rate EDPA_4_rate= myParkingLot.numberOfPakingUnit*0.05
//주차장법 시행령 6조 (부설주차장의 설치) 1항Check(ERPA_6_1){IF !CS THEN KS}CS{getResult(ERPA_6_1_1)=TRUEOR getResult(ERPA_6_1_2)=TRUEOR getResult(ERPA_6_1_3)=TRUEOR getResult(ERPA_6_1_4)=TRUEOR getResult(ERPA_6_1_5)=TRUEOR getResult(ERPA_6_1_6)=TRUE}KS{ getResult(ERPA_*_1)=TRUE}//주차장법 시행령 6조 (부설주차장의 설치) 1항 6호Check(EDPA_6_1_6){KS}KS{ getBuildingUsage()= "Factory" getObjectProperty(Building.facilityArea)>= 10000m2}
//주차장법 시행령 별표1 부설주차장의 설치대상 시설물 종류 및 설치기준 Check(EDPA_*_1_1){ IF CS THEN KS } Space mySpace1{ getBuildingUsage()=” AmusementFacility” myTotalFloorArea = getTotalFloorArea(mySpace1) CS{ isExist(mySpace1)=TRUE } KS{ ParkingLot.numberOfParkingUnit<=myTotalFloorArea/100 } Check(EDPA_*_1_2){ IF CS THEN KS } Space mySpace2{ (getBuildingUsage()= “CulturalAndAssemblyFacility” AND getBuildingUsage() !=” Auditorium”) OR (getBuildingUsage() = “ReligiousFacility | CommercialFacility | TransportationFacilit” OR getBuildingUsage() = ”MedicalFacility” AND getBuildingUsage() != “MentalHospital | ConvalescentHospital | DetentionHoispital”) OR (getBuildingUsage() = “SportsFacility” AND getBuildingUsage() != “GolfCourse | GolfDrivingRange | OurdoorSwimmingPool”) OR (getBuildingUsage()= “BusinessFacility” AND getBuildingUsage() != “ForeignOfficialResidence | Officetels” ) } myTotalFloorArea2 = getTotalFloorArea(mySpace2) } CS{ isExist(mySpace2)=TRUE } KS{ ParkingLot.numberOfParkingUnit<=myTotalFloorArea2/150 } Check(EDPA_*_1_3){ IF CS THEN KS } Space mySpace3{ ((getBuildingUsage ()=” ClassINeighborhoodLivingFacility” AND getSpaceUsage != “PublicToilet | Shelter | CommunityChildCenter”) OR getBuildingUsage ()=”ClassIINeighborhoodLivingFacility” OR getBuildingUsage ()=”LodgingFacility”) } myTotalFloorArea3 = getTotalFloorArea(mySpace3) } CS{ isExist(mySpace3)=TRUE } KS{ ParkingLot.numberOfParkingUnit<=myTotalFloorArea3/200 } Check(EDPA_*_1_4){ IF CS1 THEN KS1 OR CS2 THEN KS2 } Space mySpace1{ getBuildingUsage ()=” DetachedHouse” } myTotalFloorArea = getTotalFloorArea(mySpace1) } CS1{ myTotalFloorArea>50 AND myTotalFloorArea<=150 } KS1{ isObjectProperty(parkingLot.numberofParkingUnit)=1 } CS2{ myTotalFloorArea>150 } KS2{ (myTotalFloorArea-150)/100+1=ParkingLot.numberofParkingUnit } Check(EDPA_*_1_7){ IF CS THEN KS } Space mySpace7{ getBuildingUsage ()=”Trainingfacility” getBuildingUsage ()=”Factory” getBuildingUsage () != ”AptartmentTypeFactory” } myTotalFloorArea7 = getTotalFloorArea(myspace7) CS{ isExist(mySpace7)=TRUE } KS{ ParkingLot.numberOfParkingUnit<=myTotalFloorArea7/400 } Check(EDPA_*_1_8){ IF CS THEN KS } Space mySpace8{ getBuildingUsage ()= “Warehouse” } myTotalFloorArea8 = getTotalFloorArea(mySpace8) } CS{ isExist(mySpace8)=TRUE } KS{ ParkingLot.numberOfParkingUnit<=myTotalFloorArea8/400 } Check(EDPA_*_1_9){ IF CS THEN KS } Space mySpace9{ getBuildingUsage ()= “DormitoryForStudents” } myTotalFloorArea9 = getTotalFloorArea(myspace9) CS{ isExist(mySpace9)=TRUE } KS{ ParkingLot.numberOfParkingUnit<=myTotalFloorArea9/400 } Check(EDPA_*_1_10){ IF CS THEN KS } Space mySpace10 { getObject(Space) != myspace1 | myspace2 | myspace3 | myspace4 | myspace5 | myspace6 | myspace7 | myspace8 | myspace9 | } myTotalFloorArea10 = getTotalFloorArea(mySpace10) } CS{ isExist(mySpace9)=TRUE } KS{ ParkingLot.numberOfParkingUnit<=myTotalFloorArea10/300 } Check(EDPA_*_1_0_1){ IF CS THEN KS } CS{ getResult(EDPA_*_1_0_1_가)= TRUE OR getResult(EDPA_*_1_0_1_나)= TRUE OR getResult(EDPA_*_1_0_1_다)= TRUE OR getResult(EDPA_*_1_0_1_라)= TRUE OR getResult(EDPA_*_1_0_1_마)= TRUE OR getResult(EDPA_*_1_0_1_바)= TRUE OR getResult(EDPA_*_1_0_1_사)= TRUE } KS{ isExist(ParkingLot.isAttachedParking)=FALSE } Check(EDPA_*_1_0_1_가){ KS } isExist(ClassINeighborhoodLivingFacility.Substation)=TRUE OR isExist(ClassINeighborhoodLivingFacility.PumpingStation)=TRUE OR isExist(ClassINeighborhoodLivingFacility.PurificationPlant)=TRUE OR isExist(ClassINeighborhoodLivingFacility.Shelter)=TRUE OR isExist(ClassINeighborhoodLivingFacility.PublicToilet)=TRUE Check(EDPA_*_1_0_1_나){ KS } isExist(ReligiousFacility.Monastery)=TRUE OR isExist(ReligiousFacility.Convent)=TRUE OR isExist(ReligiousFacility.Chapel)=TRUE OR isExist(ReligiousFacility.Shrine)=TRUE Check(EDPA_*_1_0_1_다){ KS } isExist(getBuildingUsage()=”FacilityForAnimalAndPlant”)=TRUE AND isExist(getBuildingUsage()=”SlaughterHouse”)=FALSE AND isExist(getBuildingUsage()=”ChickenSlaughterHouse”)=FALSE Check(EDPA_*_1_0_1_라){ KS } isExist(FacilityForBroadcastingAndTelecommunication.TransmitAndReceptionAndTransitFacility)=TRUE Check(EDPA_*_1_0_1_마){ KS } getObjectProperty(Building.isExclusiveUseOfParkingLot) = FALSE (getBuildingUsage() != "CommercialFacility.DepartmentStore" OR "CommercialFacility.ShoppingCenter" OR "LargeStore" OR getBuildingUsage() != "CulturalAndAssemblyFacility.MovieTheater" OR "CulturalAndAssemblyFacility.ExhibitionHall" OR "CulturalAndAssemblyFacility.WeddingHall" Check(EDPA_*_1_0_1_바){ KS } getBuildingUsage()= “Station” Check(EDPA_*_1_0_1_사){ KS } getResult(EDBA_6_1_4)=TRUE Check(EDPA_*_1_0_4){ KS } Space mySpace{ getBuildingUsage()= “DetachedHouse” getBuildingUsage() !=”Multi-familyHouses” } getTotalArea(mySpace)<=50m2 getTotalArea(mySpace)/100 = ParkingLot.numberOfParkingUnit
//주택건설기준 등에 관한 규정 11조 (지하층의 활용) Check(RHC_11){ IF CS THEN KS}CS{ getBuildingUsage()=" MultiUnitHouse" getFloorNumber(Space)<0}KS{ getResult(BA_53)=True}
//주택건설기준 등에 관한 규정 15조 (승강기등) 1항Check(RHC_15_1){ getResult(RHC_15_5) = TRUE AND IF (CS1 AND !CS2) THEN KS}CS1{ getBuildingUsage() = "MultiUnitHouse" getBuildingStoriesCount() >= 6}CS2{ getBuildingStoriesCount = 6 Stair myStair{ isObjectProperty(Stair.isDirect) = TRUE } getFloorArea() = FA FA / 300 = FA2 getIntegeralNumber(FA2) = FA3 getObjectCount(myStair) >= FA3}KS{ Elevator myElevator{ getObjectProperty(Elevator.occupancy) >= 6 } isExist(myElevator) = TRUE}//주택건설기준 등에 관한 규정 15조 (승강기등) 2항Check(RHC_15_2){ IF CS THEN KS}CS{ getBuildingUsage() = "MultiUnitHouse" getBuildingStoriesCount() >= 10}KS{ Elevator myElevator{ getObjectProperty(Elevator.cooupancy) >= 6 isObjectProperty(Elevator.isEmergency) = TRUE } isExist(myElevator) = TRUE}// 주택건설기준 등에 관한 규정 15조 (승강기등) 3항 1호Check(RHC_15_3_1){ KS}KS{ getObjectProperty(Elevator.loadingCapacity) >= 0.9}//주택건설기준 등에 관한 규정 15조 (승강기등) 3항 2호Check(RHC_15_3_2){ KS}KS{ Elevator myElevator{ getObjectProperty(Elevator.usage) = "FreightElevator" } (getObjectWidth(myElevator) >= 1.35m getObjectDepth(myElevator) >= 1.6m) OR(getObjectWidth(myElevator) >= 1.6m getObjectDepth(myElevator) >= 1.35m)}//주택건설기준 등에 관한 규정 15조 (승강기등) 3항 3호Check(RHC_15_3_3){ IF CS THEN KS}CS{ }KS{ Elevator myElevator{ getObjectProperty(Elevator.usage) = "FreightElevator" } isInstalled(myElevator, Stair.Space) = TRUE}//주택건설기준 등에 관한 규정 15조 (승강기등) 3항 4호Check(RHC_15_3_4){ IF CS THEN KS}CS{ }KS{ Elevator myElevator{ getObjectProperty(Elevator.usage) = "FreightElevator" } getObjectCount(myElevator) = ELV 100*n <= getObjectProperty(Building.numberOfHousehold) <100*(n+1) n <= ELV}//주택건설기준 등에 관한 규정 15조 (승강기등) 4항Check(RHC_15_4){ IF CS THEN KS}CS{ Elevator myElevator{ isObjectProperty(Elevator.isEmergency) = TRUE OR getObjectProperty(Elevator.usage) = "PassengerElevator" } getResult(RHC_15_1) = TRUE getResult(RHC_15_2) = TRUE getResult(RHC_15_3_1) = TRUE getResult(RHC_15_3_2) = TRUE getResult(RHC_15_3_3) = TRUE getResult(RHC_15_3_4) = TRUE}KS{ Elevator myElevator{ isObjectProperty(Elevator.isEmergency) = TRUE OR getObjectProperty(Elevator.usage) = "PassengerElevator" } Elevator myElevator2{ getObjectProperty(Elevator.usage) = "FreightElevator" } isReplaced(myElevator2, myElevator) = TRUE}//주택건설기준 등에 관한 규정 15조 (승강기등) 3항Check(RHC_15_3){ getResult(RHC_15_5) = TRUE AND IF CS THEN KS}CS{ getBuildingUsage() = "MultiUnitHouse" getBuildingStoriesCount() >= 7}KS{ getResult(RHC_15_3_1) = TRUE getResult(RHC_15_3_2) = TRUE getResult(RHC_15_3_3) = TRUE getResult(RHC_15_3_4) = TRUE}//주택건설기준 등에 관한 규정 15조 (승강기등) 5항Check(RHC_15_5){ KS}KS{ getResult(RHC_15_1) = TRUE getResult(RHC_15_2) = TRUE getResult(RHC_15_3) = TRUE}
//주택법 시행령 47조 (행위허가 등의 기준 등) 5항Check(NFSC506_47_5){ IF !CS THEN KS}CS{ getBuildingUsage() = "MultiUnitHouse" getObjectProperty(Floor.number) < 0}KS{ Floor myFloor{ getObjectProperty(Floor.number) < 0 } getFloorUsage(myFloor) != "ResidentsCommonSpace"}
//건축물의 구조기준 등에 관한 규칙 24조 (건축물의 규모제한) 1항Check(RSSB_24_1){ getResult(RSSB_3_3) = TRUE AND IF CS THEN KS}CS{ isObjectProperty(CompressionMember.isStructuralMember) = TURE getObjectMaterial(CompressionMember) = "Timber"}KS{ getObjectSectionalArea(CompressionMember) >= 4500mm2}//건축물의 구조기준 등에 관한 규칙 24조 (압축재의 최소단면 및 모서리에 설치하는 기둥) 2항Check(RSSB_24_2){ getResult(RSSB_3_3) = TRUE AND IF CS THEN KS}CS{ getBuildingStoriesCount() >= 2}KS{ Column myColumn{ isInstalled(Column, Building.Edge) = TRUE
//건축물의 구조기준 등에 관한 규칙 25조 (가새) 1항Check(RSSB_25_1){ getResult(RSSB_3_3) = TRUE AND KS}KS{ Brace myBrace{ isObjectProperty(Brace.isTensileBrance) = TRUE } isObjectProperty(Brace.depth) >= 15mm getObjectMaterial(Brace) = "Timber" isObjectProperty(Brace.Material.width) >= 90mm}//건축물의 구조기준 등에 관한 규칙 25조 (가새) 2항 Check(RSSB_25_2){ getResult(RSSB_3_3) = TRUE AND KS } KS{ Brace myBrace{ isObjectProperty(Brace.isCompressionBrace) = TRUE } Column myColumn{ isObjectProperty(Column.isFramedColumn) = TRUE } CW = getObjectProperty(myColumn.width) * 1/3 getObjectProperty(Brace.depth) >= 35mm getObjectMaterial(Brace) = "Timber" getObjectProperty(Brace.Material.width) = CW }//건축물의 구조기준 등에 관한 규칙 25조 (가새) 3항 Check(RSSB_25_3){ KS } KS{ isObjectProperty(HorizontalMember.isStructuralMember) = TRUE isConnectedTo(Brace, HorizontalMember) = TRUE }
//건축물의 구조기준 등에 관한 규칙 28조 (적용범위 등) 1항Check(RSSB_28_1){ getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ (getObjectProperty(Building.Structure.materialType) = "Brick" OR "Stone" OR "ConcreteBlock") OR (isObjectProperty(Building.Structure.isMansoryStructure) = TRUE getObjectProperty(Building.Structure.materialType) != "SteelReinforcedConcreteBlock")}//건축물의 구조기준 등에 관한 규칙 28조 (적용범위 등) 2항Check(RSSB_28_2){ getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ getBuildingHeight() <= 4m getGrossFloorArea() <= 20m2}//건축물의 구조기준 등에 관한 규칙 28조 (적용범위 등) 3항Check(RSSB_28_3){ getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ Wall myWall{ isObjectProperty(Wall.isStructuralMember) = FALSE isObjectProperty(Wall.isPartitionWall) = TRUE isObjectProperty(Wall.Structure.isMansoryStructure) = TRUE } getObjectHeight(myWall) <= 2m}
//건축물의 구조기준 등에 관한 규칙 3조 (적용범위 등) 3항 Check(RSSB_3_3){ KS } KS{ getResult(EDBA_32_1) = FALSE isObjectProperty(Building.isSmallBuilding) = TRUE }
//건축물의 구조기준 등에 관한 규칙 30조 (기초) 1항Check(RSSB_30_1){ getResult(RSSB_28_3) = TRUE AND getResult(RSSB_28_2) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ Wall myWall{ isObjectProperty(Wall.isLoadBearingWall) = TRUE getObjectProperty(Wall.Structure.isMansoryStructure) = TRUE } Foundation myFoundation{ isInstalled(myWall, Foundation) = TRUE } isObjectProperty(myFoundation.isContinuousFoundation) = TRUE}//건축물의 구조기준 등에 관한 규칙 30조 (기초) 2항 Check(RSSB_30_2){ getResult(RSSB_28_3) = TRUE AND getResult(RSSB_28_2) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CS THEN KS } CS{ getResult(RSSB_30_1) = TRUE } KS{ Wall myWall{ isObjectProperty(Wall.isFoundationWall) = TRUE } (getObjectProperty(FoundationPlate.Structure.materialType) = "ReinforcedConcrete" OR getObjectProperty(FoundationPlate.Structure.materialType) = "PlainConcrete") getObjectProperty(myWall.depth) >= 250mm }
//건축물의 구조기준 등에 관한 규칙 31조 (내력벽의 높이 및 길이) 1항Check(RSSB_31_1){ getResult(RSSB_28_1) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CS THEN KS}CS{ isObjectProperty(Building.Structure.isMansoryStructure) = TRUE getBuildingStoriesCount() = 2}KS{ Wall myWall{ isObjectProperty(Wall.isLoadBearingWall) = TRUE getFloorNumber(Wall.Floor) = TRUE } getObjectHeight(myWall) < 4m}//건축물의 구조기준 등에 관한 규칙 31조 (내력벽의 높이 및 길이) 2항Check(RSSB_31_2){ getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CS THEN KS} Wall myWall{ isObjectProperty(Wall.isLoadBearingWall) = TRUE }CS{ isObjectProperty(myWall.Structure.isMansoryStructure) = TRUE}KS{ getObjectLength(myWall) < 10m}//건축물의 구조기준 등에 관한 규칙 31조 (내력벽의 높이 및 길이) 3항Check(RSSB_31_3){ getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ Wall myWall{ isObjectProperty(Wall.isLoadBearingWall) = TRUE isObjectProperty(myWall.Structure.isMansoryStructure) = TRUE } Space mySapce{ isSurrounded(Space, myWall) = TRUE } getFloorArea(mySpace) < 80m2}
//건축물의 구조기준 등에 관한 규칙 32조 (내력벽의 두께) 2항 Check(RSSB_32_2){ getResult(RSSB_32_7) = TRUE AND getResult(RSSB_32_3) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CS THEN KS } CS { getResult(RSSB_33_3)=True } KS{ //HW means Height of wall Wall myWall{ isObjectProperty(Wall.isLoadBearingWall) = TRUE } HW=getObjectHeight(myWall) IF isObjectProperty(Wall.Structure.isMansoryStructure)=TRUE IF getBuildingHeight()<5 m IF getFloorNumber(myWall)=1 IF getObjectLength(myWall)<8 m THEN getObjectThickness(myWall)>= 150 mm ELSE THEN getObjectThickness(myWall)>= 190 mm END IF END IF ELSE IF getBuildingHeight()>=5 m getBuildingHeight()<11 m getFloorNumber(myWall)=1 OR getFloorNumber(myWall)=2 THEN getObjectThickness(myWall)>= 190 mm ELSE IF getBuildingHeight()>=11 m IF getObjectLength(myWall)<8 m getFloorNumber(myWall)=1 OR getFloorNumber(myWall)=2 THEN getObjectThickness(myWall)>=190 mm ELSE IF getFloorNumber(myWall)=1 THEN getObjectThickness(myWall)>=290 mm ELSE IF getFloorNumber(myWall)=2 THEN getObjectThickness(myWall)>=190 mm END IF END IF IF getObjectMaterial(myWall)="벽돌" THEN getObjectThickness(myWall)>= HW/20 ELSE IF getObjectMaterial(myWall)="Block" THEN getObjectThickness(myWall)>= HW/16 END IF END IF }// 건축물의 구조기준 등에 관한 규칙 32조 (내력벽의 두께) 4항Check(RSSB_32_4){ getResult(RSSB_32_7) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CS THEN KS }CS{ getResult(RSSB_33_3)=True}KS{}//건축물의 구조기준 등에 관한 규칙 32조 (내력벽의 두께) 1항Check(RSSB_32_1){ getResult(RSSB_32_7) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ Wall myWall1{ isObjectProperty(Wall.isLoadBearingWall) = TRUE isObjectProperty(myWall.Structure.isMansoryStructure) = TRUE } Floor myFloor{ isInstalled(myWall1, Floor) = TRUE } Wall myWAll2{ isInstalled(Wall, myFloor.UpperFloor) = TRUE } WD = getObjectProperty(myWall2.depth) getObjectProperty(myWall1.depth) >= WD}//건축물의 구조기준 등에 관한 규칙 32조 (적용범위 등) 3항 Check(RSSB_32_3){ getResult(RSSB_32_7) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CH TEHN KS } Wall myWall{ isObjectProperty(Wall.isLoadBearingWall) = TRUE } Wall myWall1{ getResult(RSSB_32_2) = TRUE } CS{ getObjectProperty(myWall.Structure.materialType) = "Stone" OR "Brick" OR "ConcreteBlock" OR "SteelReinforcedConcreteBlock" } KS{ WT = getWallThickness(myWall) WT >= 1.2* getWallThinkness(myWall1) WT >= 1/15*getObjectHeight(myWall) }// 건축물의 구조기준 등에 관한 규칙 32조 (내력벽의 두께) 7항Check(RSSB_32_7){ KS}KS{ isObjectProperty(Wall.Structure.isMansoryStructure) = TRUE isObjectProperty(Wall.isDoubleWall) = TRUE}
check(RSSB_33_1){getResult(RSSB_28_3) = TRUE AND (RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE Wall myWall{ getObjectStructure(Wall) = "MansonryStructure" getObjectType(Wall) = "PartitionWall" } getObjectThickness(myWall) >= 90mm}// 건축물의 구조기준 등에 관한 규칙 33조 (칸막이벽 등의 두께) 2항 Check(RSSB_33_2){ getResult(RSSB_28_3) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF (!CS1 AND CS2) THEN KS } Wall myWall{ isObjectProperty(Wall.isPartitionWall)=True isObjectProperty(Wall.Structure.isMansoryStructure)=True } CS1{ getResult(RSSB_34)=True } CS2{ FN=getFloorNumber(myWall) //FN means myWall's floor number Floor myFloor{ Floor.number=FN+1 } isInstalled(myFloor, myWall)= True OR isInstalled (myFloor, MainStructure)=True } KS{ getObjectThickness(myWall)>=190 mm }//건축물의 구조기준 등에 관한 규칙 33조 (칸막이벽 등의 두께) 3항 Check(RSSB_33_3){ getResult(RSSB_28_3) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ isObjectProperty(Wall.isPartitionWall)=True isObjectProperty(Wall.Structure.isMansoryStructure)=True}
//건축물의 구조기준 등에 관한 규칙 34조 (테두리보) Check(RSSB_34){ getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CS THEN KS } CS{ Wall myWall{ isObjectProperty(Wall.isLoadBearingWall)=True } isObjectProperty(myWall.Structure.isMansoryStructure)= True } KS{ WD=getObjectProperty(myWall.depth) WH=getObjectProperty(myWall.height) WallGirder myWallGirder{ getObjectProperty(WallGirder.height)>=1.5*WD } isInstalled(myWallGrider, myWall, Top)=True IF getBuildingStoriesCount()=1 (WD>=WH/16 OR getObjectProperty(myWall.length)<=5 m ) THEN getObjectProperty(myWallGrider.Structure.materialType)="Timber" ELSE THEN getObjectProperty(myWallGrider.Structure.materialType)="SteelFrame" OR getObjectProperty(myWallGrider.Structure.materialType)="ReinforcedConcrete" END IF }
//건축물의 구조기준 등에 관한 규칙 35조 (개구부) 1항Check(RSSB_35_1){ getResult(RSSB_28_2) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CS THEN KS}CS{ Wall myWall1{ isObjectProperty(myWall.Structure.isMansoryStructure) = TRUE } isInstalled(Window, myWall) = TRUE OR isInstalled(Door, myWall) = TRUE OR isInstalled(Opening, myWall) = TRUE}KS{ getResult(RSSB_35_1_1) = TRUE getResult(RSSB_35_1_2) = TRUE}//건축물의 구조기준 등에 관한 규칙 35조 (개구부) 1항 1호Check(RSSB_35_1_1){ KS}KS{ Wall myWall1{ isObjectProperty(Wall.isRightAngleCrossingWall) = TRUE isInstalled(Wall, Floor.One) = TRUE } Wall myWall2{ isPartitioned(Wall, , myWall1) = TRUE } WL = getObjectWidth(myWall2) OW = getObjectWidth(myOpening) Opening myOpening{ isInstalled(Opening, Wall) = TRUE } Sum(OW) <= WL * 1/2}//건축물의 구조기준 등에 관한 규칙 35조 (개구부) 1항 2호Check(RSSB_35_1_2){ KS2 AND IF CS THEN KS1}KS2{ Opening myOpening1{ isInstalled(Opening, Floor.One) = TRUE } Opening myOpening2{ isInstalled(Opening, myOpening1.Floor.UpperFloor) = TRUE } getObjectVerticalDistance(myOpening1, myOpening2) >= 600mm}CS{ Opening myOpening3{ isInstalled(Opening, Floor.One.Wall.One) = TRUE } getObjectInterval(myOpening3,,a) >= 600mm}//건축물의 구조기준 등에 관한 규칙 35조 (개구부) 2항Check(RSSB_35_2){ getResult(RSSB_28_2) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF (!CS1 AND CS2) THEN KS} Wall myWall1{ isObjectProperty(myWall.Structure.isMansoryStructure) = TRUE }CS1{ isObjectProperty(Opening.UpperSideShape) = "Arc"}CS2{ isInstalled(Opening, myWall1) = TRUE}KS{ Wall myWall2{ isObejctProperty(Wall.isRightAngleCrossingWall) = TRUE isInstalled(Wall, myWall1.Floor) = TRUE } WD = getObjectProperty(myWall1.depth) getObject(Floor.One.Opening) (getObjectInterval(Opening, ) >= 2* WD OR getObjectDistance(Opening, myWall2.Center) >= 2* WD}//건축물의 구조기준 등에 관한 규칙 35조 (개구부) 3항 Check(RSSB_35_3){ getResult(RSSB_28_3) = TRUE AND getResult(RSSB_28_2) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CS THEN KS } CS{ getObjectProperty(Opening.width) > 1.8m } KS{ Beam myBeam{ isOjectProperty(Beam.isLintel) = TRUE getObjectProperty(Beam.Structure.materialType) = "ReinforcedConcrete" } getObjectVerticalLocation(myBeam, Opening) > 0 }
//건축물의 구조기준 등에 관한 규칙 36조 (벽의 홈) Check(RSSB_36){ getResult(RSSB_28_2) = TRUE AND getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CS THEN KS } CS{ Wall myWall{ isObjectProperty(Wall.Structure.isMansoryStructure)=True } isInstalled(Channel, myWall)=True } KS{ WD=getObjectProperty(myWall.depth) IF getObjectProperty(Channel.shapeType)="VerticleChannel" FH=getObjectHeight(Floor.Space) getObjectProperty(Channel.length)>=FH*3/4 THEN getObjectProperty(Channel.depth)<= WD/3 ELSE IF getObjectProperty(Channel.shapeType)="HorizontalChannel" THEN getObjectProperty(Channel.depth)<= WD/3 getObjectProperty(Channel.length)<= 3 m END IF }
//건축물의 구조기준 등에 관한 규칙 39조 (조적식구조인 담) Check(RSSB_39){ getResult(RSSB_28_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CS THEN KS}CS{ isObjectProperty(Fence.Structure.isMansoryStructure) = TRUE}KS{ getResult(RSSB_39_1) = TRUE getResult(RSSB_39_2) = TRUE getResult(RSSB_39_3) = TRUE}//건축물의 구조기준 등에 관한 규칙 39조 (조적식구조인 담) 1호Check(RSSB_39_0_1){ KS}KS{ getObjectHeight(Fence) <= 3m}//건축물의 구조기준 등에 관한 규칙 39조 (조적식구조인 담) 2호Check(RSSB_39_0_2){ KS2 AND IF CS THEN KS1}KS2{ isObjectProperty(Fence.depth) >= 190mm}CS{ getObjectHeight(Fence) <= 2m}KS1{ isObjectProperty(Fence.depth) >= 90mm}//건축물의 구조기준 등에 관한 규칙 39조 (조적식구조인 담) 3호Check(RSSB_39_0_3){ IF !CS THEN KS}CS{ }KS{ FD = getObjectProperty(Fence.depth) Wall myWall{ isObjectProperty(Wall.isSupportingWall) = TRUE } (isInstalled(myWall, Fence, b, 2) = TRUE getObjectProperty(Wall.depth) >= FD) OR (isInstalled(myWall, Fence, b, 4) = TRUE getObjectProperty(Wall.depth) >= 1.5* 2호 규정에 의한 담의 두께)}
//건축물의 구조기준 등에 관한 규칙 41조 (적용범위 등) 1항Check(RSSB_41_1){ getResult(RSSB_41_1) = TRUE AND KS}KS{ getObjectProperty(Building.Structure.materialType) = "SteelReinforcedConcreteBlock" OR "ReinforcedConcrete"}//건축물의 구조기준 등에 관한 규칙 41조 (적용범위) 2항Check(RSSB_41_2){ getResult(RSSB_41_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF CS THEN KS }CS{ getBuildingHeight()<=4 m getGrossFloorArea() <=20 m2 }KS{ getResult(RSSB_42)=True getResult(RSSB_45)=True}
// 건축물의 구조기준 등에 관한 규칙 42조 (기초)Check(RSSB_42){ getResult(RSSB_41_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ Wall myWall{ isObjectProperty(Wall.isLoadBearingWall) = TRUE getFloorNumber(Wall) < 1 } getObjectProperty(myWall.Structure.materialType) = "SteelReinforcedConcreteBlock" isObjectProperty(Foundation.isCountinuousFoundation) = TRUE getObjectStructure(FoundationPlate.Structure.materialType) = "ReinforcedConcrete"}
// 건축물의 구조기준 등에 관한 규칙 43조 (내력벽) 1항Check(RSSB_43_1){ getResult(RSSB_41_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ Wall myWall{ isObjectProperty(Wall.isLoadBearingWall) = TRUE getObjectProperty(Wall.Structure.materialType) = "SteelReinforcedConcreteBlock" } FA =getObjectArea(Floor.One) getObjectProperty(myWall.Length)>= FA*0.15 m getObjectProperty(myWall.width)>= FA*0.15 m Space mySpace{ isSurrounded(Space, myWall)=True } getFloorArea(mySpace)<=80 m2}// 건축물의 구조기준 등에 관한 규칙 43조 (내력벽) 2항Check(RSSB_43_2){ getResult(RSSB_41_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ Wall myWall{ isObjectProperty(Wall.isLoadBearingWall) = TRUE getFloorNumber(Wall) < 1 getObjectProperty(Wall.Structure.materialType) = "SteelReinforcedConcreteBlock" } getWallThickness(myWall) >= 150mm}// 건축물의 구조기준 등에 관한 규칙 43조 (내력벽) 3항Check(RSSB_43_3){ getResult(RSSB_41_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ Wall myWall{ isObjectProperty(Wall.isLoadBearingWall) = TRUE getObjectProperty(Wall.Structure.materialType) = "SteelReinforcedConcreteBlock" } Reinforcement myReinforcement{ getObjectProperty(Reinforcement.diameter)>=12 mm } isInstalled( myReinforcement, myWall, Vertical , myWall.BothEndSides)=True isInstalled( myReinforcement, myWall, Vertical , myWall.Edge)=True Reinforcement myReinforcement2{ getObjectProperty(Reinforcement.diameter)>=9 mm } isInstalled( myReinforcement2, myWall, 800 mm , myWall.BothEndSides)=True isInstalled( myReinforcement2, myWall, 800 mm , myWall.Edge)=True}//건축물의 구조기준 등에 관한 규칙 43조 (내력벽) 4항 Check(RSSB_43_4){ getResult(RSSB_41_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS } KS{ RD>=40*getObjectProperty(RSSB_43_3_myReinforcement.diameter) isInstalled( RSSB_43_3_myReinforcement.BothEndSides, FoundationPlate , RD, "정착")=True OR isInstalled( RSSB_43_3_myReinforcement.BothEndSides, WallGirder, RD, "정착")=True OR isInstalled( RSSB_43_3_myReinforcement.BothEndSides, FloorSlab , RD, "정착")=True }
//건축물의 구조기준 등에 관한 규칙 44조 (테두리보) Check(RSSB_44){ getResult(RSSB_41_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND IF !CS THEN KS } !CS{ Wall myWall{ isInstalled(Wall, TopFloor)=True } FloorSlab myFloorSlab{ isInstalled(FloorSlab, Rooftop) = TRUE getObjectProperty(FloorSlab.Structure.materialType)="ReinforcedConcrete" } isInstalled(myFloorSlabOfRooftop, myWall, Top)=True } KS{ Wall myWall{ isObjectProperty(Wall.isLoadBearingWall)=True isObjectProperty(Wall.Structure.isMansoryStructure)= True } WD=getObjectProperty(myWall.depth) WallGirder myWallGirder{ getObjectProperty(WallGirder.height)>=1.5*WD getObjectProperty(myWallGrider.Structure.materialType)="ReinforcedConcrete" } isInstalled(myWallGrider, myWall, Top)=True }
// 건축물의 구조기준 등에 관한 규칙 45조 (보강블록구조의 담)Check(RSSB_45){ getResult(RSSB_41_1) = TRUE AND getResult(RSSB_3_3) = TRUE AND KS}KS{ getResult(RSSB_45_0_1) = TRUE getResult(RSSB_45_0_2) = TRUE getResult(RSSB_45_0_3) = TRUE}// 건축물의 구조기준 등에 관한 규칙 45조 (보강블록구조의 담) 1항Check(RSSB_45_1){ getResult(RSSB_3_3) = TRUE AND KS}KS{ getObjectHeight(Fence) <= 3m}// 건축물의 구조기준 등에 관한 규칙 45조 (보강블록구조의 담) 2항Check(RSSB_45_2){ getResult(RSSB_3_3) = TRUE AND IF (CS THEN KS1) OR (!CS THEN KS2)}CS{ getObjectHeight(Fence) > 2m}KS1{ getObjectThickness(Fence) >= 150mm}KS2{ getObjectThickness(Fence) >= 90mm}// 건축물의 구조기준 등에 관한 규칙 45조 (내력벽) 4호Check(RSSB_45_0_4){ getResult(RSSB_3_3) = TRUE AND KS}KS{ isInstalled( Reinforcement, Fense, 800 mm , Fense.In)=True Reinforcement myReinforcement{ getObjectProperty(Reinforcement.diameter)>=9 mm } isInstalled( myReinforcement, Fense, Vertical , Fense.BothEndSides)=True isInstalled( myReinforcement, Fense, Vertical , Fense.Edge)=True}
//건축물의 구조기준 등에 관한 규칙 47조 (적용범위) 2항 Check(RSSB_47_2){ getResult(RSSB_3_3) = TRUE AND IF CS THEN KS } CS{ getBuildingHeight()<=4 m getGrossFloorArea() <=30 m2 OR getObjectHeight(Fence)<= 3m } KS{ getResult(RSSB_51)=True }
//건축물의 구조기준 등에 관한 규칙 51조 (철근을 덮는 두께) Check(RSSB_51){ getResult(RSSB_3_3) = TRUE AND IF CS THEN KS }CS{ // 철근을 덥는 콘크리트 }KS{ getResult(RSSB_51_0_1)=True getResult(RSSB_51_0_2)=True}//건축물의 구조기준 등에 관한 규칙 51조 (철근을 덮는 두께) 1호Check(RSSB_51_0_1){ IF CS THEN KS }CS{ isExternal(Concrete)=True // 흙에 접하거나 }KS{ getResult(RSSB_51_0_1_가)=True getResult(RSSB_51_0_1_나)=True getResult(RSSB_51_0_1_다)=True }//건축물의 구조기준 등에 관한 규칙 51조 (철근을 덮는 두께) 1호 가목Check(RSSB_51_0_1_가){ IF CS THEN KS}CS{ getObjectDiameter("철근")>=29 mm }KS{ getObjectThickness("철근을 덮는 콘크리트")>=60 mm}// 건축물의 구조기준 등에 관한 규칙 51조 (철근을 덮는 두께) 1호 나목Check(RSSB_51_0_1_나){ IF CS THEN KS}CS{ getObjectDiameter("철근")>16 mm getObjectDiameter("철근")<29 mm }KS{ getObjectThickness("철근을 덮는 콘크리트")>=50 mm}// 건축물의 구조기준 등에 관한 규칙 51조 (철근을 덮는 두께) 1호 다목Check(RSSB_51_0_1_다){ IF CS THEN KS}CS{ getObjectDiameter("철근")<=16 mm }KS{ getObjectThickness("철근을 덮는 콘크리트")>=40 mm}//건축물의 구조기준 등에 관한 규칙 51조 (철근을 덮는 두께) 2호Check(RSSB_51_0_2){ IF CS THEN KS }CS{ isExternal(Concrete)=False // 흙에 접하지 않는 경우 }KS{ getResult(RSSB_51_0_2_가)=True getResult(RSSB_51_0_2_나)=True}// 건축물의 구조기준 등에 관한 규칙 51조 (철근을 덮는 두께) 2호 가목Check(RSSB_51_0_2_가){ KS}KS{ getObjectThickness(Slab)>=20 mm getObjectThickness(Wall)>=20 mm getObjectThickness(BridgingJoist)>=20 mm}// 건축물의 구조기준 등에 관한 규칙 51조 (철근을 덮는 두께) 2호 나목Check(RSSB_51_0_2_나){ KS}KS{ getObjectThickness(Beam)>=40 mm getObjectThickness(Column)>=40 mm }
//건축물의 구조기준 등에 관한 규칙 52조 (보의 구조) Check(RSSB_52){ getResult(RSSB_3_3) = TRUE AND IF CS THEN KS } CS{ isObjectProperty(Beam.isStructuralMember)=True } KS{ getObjectProperty(Beam.MainReinforcement.diameter)>=12 mm getObjectProperty(Beam."늑근".diameter
// 건축물의 구조기준 등에 관한 규칙 53조 (콘크리트슬래브의 구조) 1호 Check(RSSB_53_0_1){ KS } KS{ isObjectProperty(Slab.isConcreteSlab) = TRUE getObjectThickness(Slab)>= 80 mm getResult(RSSB_*_9)=True }//건축물의 구조기준 등에 관한 규칙 53조 (콘크리트슬래브의 구조) 2호Check(RSSB_53_0_2){ KS}KS{ getObjectDistance(TensionReinforcement, "최대휨모멘트를 받는 부분의 단변방향의 간격") <=200 mm getObjectDistance(TensionReinforcement, "최대휨모멘트를 받는 부분의 장변방향의 간격") <=300 mm TS=getObjectThickness(Slab) getObjectDistance(TensionReinforcement, "최대휨모멘트를 받는 부분의간격") <= TS/3}//건축물의 구조기준 등에 관한 규칙 53조 (콘크리트슬래브의 구조) Check(RSSB_53){ getResult(RSSB_3_3) = TRUE AND KS}KS{ getResult(RSSB_53_0_1)=True getResult(RSSB_53_0_2)=True}
//건축물의 구조기준 등에 관한 규칙 54조 (내력벽의 구조) 1호Check(RSSB_54_0_1){ IF !CS THEN KS}Wall myWall{ isObjectProperty(Wall.isLoadBearingWall)=True }CS{ getWallThickness(myWall)>=120 mmm}KS{ H1=getObjectHeight(myWall) H2= H1-4.5 m getWallThickness(myWall,H2,H1)>=150 mm H3=getFloorElevationHeight(myWall.Floor) getWallThickness(myWall,H3,H2,3 m, a)>=150+10*a }//건축물의 구조기준 등에 관한 규칙 54조 (내력벽의 구조) 2호Check(RSSB_54_02){ KS}KS{ Wall myWall{ isObjectProperty(Wall.isLoadBearingWall)=True } Reinforcement myReinforcement{ getObjectProperty(Reinforcement.diameter)>=9 mm } isInstalled(myReinforcement, myWall, 450 mm)=True //벽두께의 3배 이하이어야 한다. IF getObjectProperty(myWall.depth)>=200 mm THEN isInstalled(DoubleReinforcement, myWall, myWall.BothSides)=True END IF }//건축물의 구조기준 등에 관한 규칙 54조 (내력벽의 구조)Check(RSSB_54){ getResult(RSSB_3_3) = TRUE AND IF CS THEN KS }CS{ isObjectProperty(Wall.isStructuralMember)=True getObjectProperty(Wall.material)="Concrete"}KS{ getResult(RSSB_54_0_1)=True getResult(RSSB_54_0_2)=True}
//건축물의 구조기준 등에 관한 규칙 9조의3 (건축물의 규모제한) 1항 Check(RSSB_9-3_1){ IF (CS1 THEN KS1) OR (CS2 THEN KS2) } MainStructuralPart myMainStructuralPart1{ getObject(FloorSlab) OR getObject(RoofTruss) } MainStructuralPart myMainStructuralPart2{ MainStructuralPart != myMainStructuralPart1 } CS1{ isInstalled(SprinklerSystem) != TRUE getObjectProperty(myMainStructuralPart2.Structure.materialType) = "Timber" } KS1{ getObjectVerticalDistance(FloorSlab, Roof) <= 18m getObjectVerticalDistance(FloorSlab, Eave) <= 15m getGrossFloorArea() <= 3000m2 } CS2{ isInstalled(SprinklerSystem) = TRUE getObjectProperty(myMainStructuralPart2.Structure.materialType) = "Timber" } KS1{ getObjectVerticalDistance(FloorSlab, Roof) <= 18m getObjectVerticalDistance(FloorSlab, Eave) <= 15m getGrossFloorArea() <= 6000m2 }//건축물의 구조기준 등에 관한 규칙 9조의3 (건축물의 규모제한) 2항Check(RSSB_9-3_2){ IF CS THEN KS}CS{ isObjectProperty(MainStructuralPart.Structure.isUnreinforcedMansoryStructure) = TRUE}KS{ getObjectVerticalDistance(FloorSlab, Roof) <= 15m getObjectVerticalDistance(FloorSlab, Eave) <= 11m getBuildingStoriesCount() <= 3}
//건축물의 설비기준 등에 관한 규칙 10조 (비상용승강기의 승강장 및 승강로의 구조) Check(RFB_10_0_2){ getResult(RFB_10_0_2_가) = TRUE getResult(RFB_10_0_2_나) = TRUE getResult(RFB_10_0_2_다) = TRUE getResult(RFB_10_0_2_라) = TRUE getResult(RFB_10_0_2_바) = TRUE getResult(RFB_10_0_2_사) = TRUE }//건축물의 설비기준 등에 관한 규칙 10조 (비상용승강기의 승강장 및 승강로의 구조) 2호 가목Check(RFB_10_0_2_가){}KS{isPartitioned(, obj2, obj3) }}//건축물의 설비기준 등에 관한 규칙 10조 (비상용승강기의 승강장 및 승강로의 구조) 2호 나목Check(RFB_10_0_2_나){ KS1 AND IF !(CS) THEN KS2} Space mySpace{ hasObject(Floor,Space)=TRUE isAccessible(Platform,Space) = TRUE }KS1{ isExist(mySpace)=TRUE}CS{ isAccessible(Platform, myFloor) = TRUE}KS2{ Door myDoor{ hasSpace(Platform, Door) =TRUE hasSpace(mySpace, Door) =TRUE Door != ElevatorShaft.Opening } isObjectProperty(myDoor.isStrictFireproofDoor)= TRUE}//건축물의 설비기준 등에 관한 규칙 10조 (비상용승강기의 승강장 및 승강로의 구조) 2호 다목Check(RFB_10_0_2_다){ KS}KS{ Elevator myElevator{ isObjectProperty(Elevator.isEmergency)=TRUE } Window myWindow{ isObjectProperty(Window.isExternalDirection)=TRUE } SmokeExhaustionSystem mySmokeExhaustionSystem{ getResult(RFB_14_2) = TRUE } hasObject(myElevator.Platform,OpenFloorStructure) = TRUE hasObject(myElevator.Platform, myWindow) = TRUE isExist(mySmokeExhaustionSystem)=TRUE }//건축물의 설비기준 등에 관한 규칙 10조 (비상용승강기의 승강장 및 승강로의 구조) 2호 라목Check(RFB_10_0_2_라){ KS}KS{ Elevator myElevator{ isObjectProperty(Elevator.isEmergency)=TRUE } isObjectProperty(myElevator.Platform.Wall.InteriorFinish.Material.nonCombustibility) = TRUE isObjectProperty(myElevator.Platform.CeilingCovering.InteriorFinish.Material.nonCombustibility) = TRUE}//건축물의 설비기준 등에 관한 규칙 10조 (비상용승강기의 승강장 및 승강로의 구조) 2호 바목Check(RFB_10_0_2_바){ IF !CS THEN KS} Elevator myElevator{ isObjectProperty(Elevator.isEmergency)=TRUE }CS{ isExternal(myElevator.Platform) = TRUE}KS{ EN = getObjectProperty(Elevator.numberOf) getObjectProperty(myElevator.Platform.area) >= EN*6}//건축물의 설비기준 등에 관한 규칙 10조 (비상용승강기의 승강장 및 승강로의 구조) 3호 Check(RFB_10_0_3){ getResult(RFB_10_0_3_가) = TRUE getResult(RFB_10_0_3_나) = TRUE }//건축물의 설비기준 등에 관한 규칙 10조 (비상용승강기의 승강장 및 승강로의 구조) 3호 가목Check(RFB_10_0_3_가){ KS}KS{ Elevator myElevator{ isObjectProperty(Elevator.isEmergency)=TRUE } isObjectProperty(myElevator.ElevatorShaft.isFirePartition)=TRUE}//건축물의 설비기준 등에 관한 규칙 10조 (비상용승강기의 승강장 및 승강로의 구조) 3호 나목 Check(RFB_10_0_3_나){ KS } KS{ Floor myFloor{ isObjectProperty(Floor.isEscape)=TRUE } ElevatorShaft myElevatorShaft1{ hasObject(Floor,ElevatorShaft)=TRUE } ElevatorShaft myElevatorShaft2{ hasObject(myFloor,ElevatorShaft)=TRUE } isConnectedTo(myElevatorShaf1t, myElevatorShaft2, SingleStructure)=TRUE }//건축물의 설비기준 등에 관한 규칙 10조 (비상용승강기의 승강장 및 승강로의 구조) Check(RFB_10){ getResult(RFB_10_2) = TRUE getResult(RFB_10_3) = TRUE}
// 건축물의 설비기준 등에 관한 규칙 13조 (개별난방설비) 1항Check(RFB_13_1){ IF CS THEN KS}CS{ getBuildingUsage() = "DetachedHouse" OR getBuildingUsage() = "MultiUnitHouse"}KS{ getResult(RFB_13_1_1) = TRUE getResult(RFB_13_1_2) = TRUE getResult(RFB_13_1_5) = TRUE getResult(RFB_13_1_6) = TRUE getResult(RFB_13_1_7) = TRUE}// 건축물의 설비기준 등에 관한 규칙 13조 (개별난방설비) 1항 1호Check(RFB_13_1_1){ KS}KS{ hasSpace(Room, Boiler) = FALSE Room myRoom{ hasSpace(Room, Boiler) = TRUE } Room myRoom2{ hasAdjacent(myRoom, Room) = TRUE } Wall myWall{ isPartitioned(myRoom, myRoom2, Wall) = TRUE hasObject(Wall, Door.isEntrance) = FALSE isObjectProperty(Wall.isfireResistantStructure) = TRUE } isExist(myWall) = TRUE}// 건축물의 설비기준 등에 관한 규칙 13조 (개별난방설비) 1항 2호 Check(RFB_13_1_2){ IF CS THEN KS } CS{ isExist(Boiler) = TRUE isObjectProperty(Boiler.isElectricBoiler) = FALSE } KS{ Ventilator myVentilator{ getObjectArea(Ventilator) >= 0.5cm2 } Space mySpace{ getSpaceUsage(Space) = "BoilerRoom" } isInstalled(myVentilator, mySpace, a, top) = TRUE AirInlet myAirInlet{ getObjectDiameter(AirInlet, b) >= 10cm } AirOutlet myAirOutlet{ getObjectDiameter(AirOutlet, b) >= 10cm } (isInstalled(myAirInlet, mySpace, a, top) = TRUE OR isInstalled(myAirOutlet, mySpace, a, top) = TRUE) (isInstalled(myAirInlet, mySpace, a, bottom) = TRUE OR isInstalled(myAirOutlet, mySpace, a, bottom) = TRUE) }// 건축물의 설비기준 등에 관한 규칙 13조 (개별난방설비) 1항 5호 Check(RFB_13_1_5){ IF CS THEN KS } CS{ isObjectProperty(Boiler.isOilBoiler) = FALSE } KS{ Space mySpace1{ getSpaceUsage(Space) = "BoilerRoom" } Space mySpace2{ getSpaceUsage(Space) = "OilStorageFacilities" } hasSpace(mySpace1, mySpace2) = FALSE }// 건축물의 설비기준 등에 관한 규칙 13조 (개별난방설비) 1항 6호 Check(RFB_13_1_6){ IF CS THEN KS } CS{ getBuildingUsage() = "Officetel" } KS{ Wall myWall{ isObjectProperty(Wall.isfireResistantStructure) } FloorSlab myFloorSlab{ isObjectProperty(FloorSlab.isFireResistantStructure) = TRUE } Door myDoor{ isObjectProperty(Door.isStrictFireproofDoor) = TRUE } Zone myZone{ isObjectProperty(Zone.isHeatingSection) = TRUE } isPartitioned(myZone, myWall) = TRUE OR isPartitioned(myZone, myFloorSlab) = TRUE OR isPartitioned(myZone, myDoor) = TRUE }//건축물의 설비기준 등에 관한 규칙 13조 (개별난방설비) 1항 7호 Check(RFB_13_1_7){ KS } KS{ isFireResistantStructure(GasDuct) = TRUE isShared(GasDuct) = TRUE }// 건축물의 설비기준 등에 관한 규칙 13조 (개별난방설비) 2항 Check(RFB_13_2){ IF CS THEN KS } CS{ getBuildingUsage() = "Officetel" } KS{ Wall myWall{ isObjectProperty(Wall.isfireResistantStructure) } FloorSlab myFloorSlab{ isObjectProperty(FloorSlab.isFireResistantStructure) = TRUE } Door myDoor{ isObjectProperty(Door.isStrictFireproofDoor) = TRUE } Zone myZone{ isObjectProperty(Zone.isHeatingSection) = TRUE } isPartitioned(myZone, myWall) = TRUE OR isPartitioned(myZone, myFloorSlab) = TRUE OR isPartitioned(myZone, myDoor) = TRUE }
//건축물의 설비기준 등에 관한 규칙 14조 (배연설비) 1항 Check(RFB_14_1){ IF (CS) THEN KS } CS { isObjectProperty(Floor.isEscape) = FALSE } KS { isExist(SmokeExhaustionSystem)=TRUE getResult(RFB_14_1_1) = TRUE AND getResult(RFB_14_1_2) = TRUE }//건축물의 설비기준 등에 관한 규칙 14조 (배연설비) 1항 1호 Check(RFB_14_1_1){ IF (CS) THEN KS1 AND KS2 } Zone myZone{ isObjectProperty(Zone.isFirePartition) = TRUE } CS{ isObjectProperty(Building.isFirePartition) = TRUE } KS1{ hasSpace(myZone, SmokeVentilator) = TRUE getObjectVerticalDistance(SmokeVentilator, Ceiling) < 0.9 m OR getObjectVerticalDistance(SmokeVentilator, CeilingCovering) < 0.9 m } KS2{ IF{ getSpaceHeight(myZone, b) >= 3 m } THEN{ getObjectVerticalDistance(SmokeVentilator, FloorSlab) >= 2.1 m } }//건축물의 설비기준 등에 관한 규칙 14조 (배연설비) 1항 2호Check(RFB_14_1_2){ IF (CS) THEN (KS1 OR KS2)}Zone myZone{ isObjectProperty(Zone.isFirePartition) = TRUE}Space mySpace{ getSpaceUsage(Space) = "Room" getTotalElementArea(Ventilator) >= getFloorArea(Space)*0.05}Space mySpace2{ hasSpace(Space, myZone) = TRUE getResult(EDBA_46_1) = TRUE getREsult(EDBA_46_3) = TRUE}CS{ getElementArea(SmokeVentilator) >= 1 m2 getResult(RFB_*_2) = TRUE}KS1{ getTotalElementArea(Ventilator) >= (getBuildingArea()-getFloorArea(mySpace))*0.01}KS2{ getTotalElementArea(Ventilator) >= (getFloorArea(myZone)-getFloorArea(mySpace))*0.01}//건축물의 설비기준 등에 관한 규칙 14조 (배연설비) 2항 Check(RFB_14_2){ IF CS THEN KS } CS { isObjectProperty(Stair.isSpecialEscape)=TRUE OR isObjectProperty(Elevator.isEmergency)=TRUE } KS { getResult(RFB_14_2_1) = TRUE getResult(RFB_14_2_4) = TRUE }//건축물의 설비기준 등에 관한 규칙 14조 (배연설비) 2항1호 Check(RFB_14_2_1){ Duct myDuct{ getObjectProperty(Duct.functionType) = "Exhaust" } isObjectProperty(SmokeExhaustionOpening.Material.nonCombustibility) = TRUE isObjectProperty(myDuct.Material.nonCombustibility) = TRUE (isConnectedToExternal(SmokeExhaustionOpening) = TRUE isConnectedToExternal(myDuct) = TRUE) OR( isConnectedTo(SmokeExhaustionOpening,Chimney) = TRUE isConnectedTo(myDuct,Chimney) = TRUE) }//건축물의 설비기준 등에 관한 규칙 14조 (배연설비) 2항4호 Check(RFB_14_2_4){ IF isConnectedToExternal(SmokeExhaustionOpening) = FALSE THEN isExist(SmokeExtractor) = TRUE }
// 건축물의 설비기준 등에 관한 규칙 17조의2 (차수설비) 1항 Check(RFB_17-2_1){ IF CS THEN KS } CS{ getResult(RFB_17-2_1_1) = TRUE OR getResult(RFB_17-2_1_2) = TRUE getGrossFloorArea() >= 10000m2 } KS{ Floor myFloor{ getObjectProperty(Floor.number) <0 } hasSpace(myFloor,WaterCutoffSystem) = TRUE }// 건축물의 설비기준 등에 관한 규칙 17조의2 (차수설비) 1항 1호Check(RFB_17-2_1_1){ KS}KS{ getResult(LPUA_37_1_5) = TRUE}// 건축물의 설비기준 등에 관한 규칙 17조의2 (차수설비) 1항 1호Check(RFB_17-2_1_2){ KS}KS{ getResult(Unimplemented_CNDA_12_1) = TRUE}
//건축물의 설비기준 등에 관한 규칙 20 (피뢰설비) 5호 Check(RFB_20_0_5){ IF(CS1 THEN KS1) OR (CS2 THEN KS2) } CS1{ getBuildingHeight() > 60m } KS1{ BH1 = getBuildingHeight() isInstalled(Terminal, Building, a, side) = TRUE getObjectVerticalDistance(Ground, Terminal, a) >= BH1 * 4/5 getObjectVerticalDistance(Ground, Terminal, a) < BH1 } CS2{ getBuildingHeight() > 150m } KS2{ BH2 = getBuildingHeight() isInstalled(Terminal, Building, a, side) = TRUE getObjectVerticalDistance(Ground, Terminal, a) >= 120m getObjectVerticalDistance(Ground, Terminal, a) < BH2 }
//건축물의 설비기준 등에 관한 규칙 20조의2 (전기설비 설치공간 기준)Check(RFB_20-2){ KS}KS{ getResult(Unimplemented_RFB_*3-3)=True}
// 건축물의 설비기준 등에 관한 규칙 23조 (건축물의 냉방설비) 3항 1호Check(RFB_23_3_1){ KS}KS{ getObjectVerticalLocation(AirOutlet, RoadSurface) >= 2m}// 건축물의 설비기준 등에 관한 규칙 23조 (건축물의 냉방설비) 3항Check(RFB_23_3){ IF CS THEN KS}CS{ getBuildingUsage() = "ResidentialArea" OR getBuildingUsage() = "CommercialArea"}KS{ getResult(RFB_23_3_1)}
//건축물의 설비기준 등에 관한 규칙 5조 (승용승강기의 설치기준) Check(RFB_5){ IF !(CS) THEN KS1}CS{getObjectProperty(Elevator.usage) = "PassengerElevator" isExist(Elevator) = TRUE}KS1{ getResult(RFB_*_1-2) = TRUE}
//건축물의 설비기준 등에 관한 규칙 6조 (승강기의 구조) Check(RFB_6){ IF CS THEN KS}CS{ Elevator myElevator{ isObjectProperty(Elevator.isEmergency) = TRUE } isInstalled(Elevator) = TRUE OR isInstalled(Escalator) = TRUE OR isInstalled(myElevator) = TRUE}KS{ getResult(Unimplemented_EFSMA) = TRUE}
//건축물의 설비기준 등에 관한 규칙 9조 (비상용승강기를 설치하지 아니할 수 있는 건축물) 1호Check(RFB_9_0_1){ KS}KS{ Floor myFloor{ getObjectHeight(Floor)>31 m } hasObject(myFloor, Room)=FALSE}//건축물의 설비기준 등에 관한 규칙 9조 (비상용승강기를 설치하지 아니할 수 있는 건축물) 2호Check(RFB_9_0_2){ KS}KS{ getBuildingHeight()>31 m getTotalFloorArea()<=500 m2}//건축물의 설비기준 등에 관한 규칙 9조 (비상용승강기를 설치하지 아니할 수 있는 건축물) 3호 Check(RFB_9_0_3){ KS } KS{ getBuildingHeight()>31 m getBuildingStoriesCount()<=4 IF isObjectProperty(Wall.InteriorFinish.Material.nonCombustibility)=TRUE isObjectProperty(CeilingCovering.InteriorFinish.Material.nonCombustibility)=TRUE THEN isFirePartition(Floor, a,500)=TRUE ELSE THEN isFirePartition(Floor, a,200)=TRUE END IF }//건축물의 설비기준 등에 관한 규칙 9조 (비상용승강기를 설치하지 아니할 수 있는 건축물) Check(RFB_9){ KS } KS{ getResult(RFB_9_0_1)=TRUE OR getResult(RFB_9_0_2)=TRUE OR getResult(RFB_9_0_3)=TRUE }
//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 10조 (관람석등으로부터의 출구의 설치기준) 1항check(REFB_10_1){ Space mySpace = getSpace("Auditorium") + getSpace("AssemblyHall") Door myExit { isAccessible(mySpace, Door) = TRUE isObjectProperty(Door.isEntrance) = TRUE }getObjectProperty(myExit.panelOperationType) != "OpeningInDoor"}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 10조 (관람석등으로부터의 출구의 설치기준) 2항check(REFB_10_2){ IF (CS) THEN KS ENDIF}CS{ getBuildingUsage() = "CulturalAndAssemblyFacility.PerformanceHall" Space mySpace = getSpace("individualSeats") getFloorArea(mySpace) >= 300KS{ getResult(REFB_10_2_1) = TRUE getResult(REFB_10_2_2) = TRUE getResult(REFB_10_2_3) = TRUE}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 10조 (관람석등으로부터의 출구의 설치기준) 2항 1호check(REFB_10_2_1){ Door myExit { Door.Space.name = "individualSeats" getFloorArea(Door.Space) >= 300 isObjectProperty(Door.isEntrance) = TRUE } getObjectCount(myExit) >= 2}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 10조 (관람석등으로부터의 출구의 설치기준) 2항 2호check(REFB_10_2_2){ Door myExit { Door.Space.name = "individualSeats" getFloorArea(Door.Space) >= 300 isObjectProperty(Door.isEntrance) = TRUE } getObjectWidth(myExit) >= 1.5m}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 10조 (관람석등으로부터의 출구의 설치기준) 2항 3호check(REFB_10_2_3){ Door myExit { Door.Space.name = "individualSeats" getFloorArea(Door.Space) >= 300 isObjectProperty(Door.isEntrance) = TRUE } getTotalObjectWidth(myExit) >= getFloorArea(myExit.Space)/100*0.6}
//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 1항Check(REFB_11_1){ IF CS THEN KS1 AND KS2}CS {Door myDoor{ isObjectProperty(Door.isEntrance)=TRUE}isExist(myDoor)}KS1 {Floor myFloor{ isObjectProperty(Floor.isEscape)=TRUE}getObjectDistance(myFloor.Stair, myDoor,a) <= EDBA_34_1.distance}KS2 {getObjectDistance(Room, myDoor) <= (EDBA_34_1.distance)*2}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 2항 Check(REFB_11_2){ IF CS1 AND CS2 THEN KS } CS1 { Building myBuilding{ getBuildingUsage() = “CulturalAndAssemblyFacility” OR getBuildingUsage() = “ReligiousFacility” OR getBuildingUsage() = “AmusementFacility” OR getBuildingUsage() = “FuneralParlor” getBuildingUsage() != “ExhibitionHall” getBuildingUsage() != “ZoologicalAndBotanicalGarden” } Door myDoor{ isObjectProperty(myBuilding.Door.isEntrance)=TRUE } isExist(myDoor) = TRUE } KS { getObjectProperty(myDoor.panelOperationType) != “OpeningInDoor” }// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 3항 Check(REFB_11_3){ IF CS1 AND CS2 THEN KS } CS1 { Building myBuilding{ getBuildingUsage() = “AssemblyHall” OR getBuildingUsage() = “PerformanceHall” } Space mySpace{ myBuilding.Space.name = “Auditorium” Space.FloorSlab.area >= 300 m2 } isExist(mySpace) = TRUE } CS2 { Door myDoor{ isObjectProperty(Door.isEntrance)=TRUE } hasObject(myBuilding,myDoor) = TRUE } KS { Door myDoor{ getObjectProperty(Door.functionType) = "Auxiliary" OR getObjectProperty(Door.functionType) = "Emergency" } getObjectCount(myDoor) >=2 }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 4항Check(REFB_11_4){ IF CS THEN KS}CS {Floor myFloor{getObjectUsage(Floor) = “CommercialFacility”isObjectProperty(Floor.isEscape)=TRUE}Door myDoor{isObjectProperty(Door.isEntrance)=TRUE}hasObject(myFloor,myDoor) = TRUE}KS{myFloor.myDoor.effectiveWidth >= }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 5항Check(REFB_11_5){ IF CS1 AND CS2 THEN KS}CS1 {getResult(REFB_11_5_1)=TRUEOR getResult(REFB_11_5_2)=TRUEOR getResult(REFB_11_5_3)=TRUEOR getResult(REFB_11_5_4)=TRUEOR getResult(REFB_11_5_5)=TRUEOR getResult(REFB_11_5_6)=TRUE}CS2{Floor myFloor{ isObjectProperty(Floor.isEscape)=TRUE}Passage myPassage{isDirectlyAccessible(myFloor,Passage) = TRUEOR isDirectlyAccessible(myFloor.Platform,Passage) = TRUEisConnectedToExternal(Passage) = TRUE}isExist(myPassage)=TRUE}KS{hasObject(myPassage,Ramp)=TRUEgetResult(REFB_15_5)=TRUE}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 5항 1호 Check(REFB_11_5_1){ KS } KS { Building myBuilding{ getBuildingUsage() = “ClassINeighborhoodLivingFacility.CommunityCenter” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.PoliceBox” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.PoliceSubstation” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.FireStation” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.PostOffice” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.BroadcastingStation” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.HealthCenter” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.PublicLibrary” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.RegionalHealthInsuranceAssociation” } Space mySpace{ Space.usage=“CommunityCenter” Space.usage=“PoliceBox” Space.usage=“PoliceSubstation” Space.usage=“FireStation” Space.usage=“PostOffice” Space.usage=“BroadcastingStation” Space.usage=“HealthCenter” Space.usage=“PublicLibrary” Space.usage=“RegionalHealthInsuranceAssociation” Space.FloorSlab.area < 1000 m2 } isExist(myBuilding) = TRUE isExist(mySpace) = TRUE }건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 5항 2호 Check(REFB_11_5_2){ KS } KS { Building myBuilding{ getBuildingUsage() = “ClassINeighborhoodLivingFacility.VillageHall” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.CommunityWorkspace” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.CommunitySalesShop” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.Substation” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.PumpingStation” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.PurificationPlant” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.Shelter” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.PublicLibrary” OR getBuildingUsage() = “ClassINeighborhoodLivingFacility.PublicToilet” } isExist(myBuilding) = TRUE }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 5항 3호Check(REFB_11_5_3){KS}KS {getBuildingUsage() = “CommercialFacility”OR getBuildingUsage() = “TransportationFacility”getObjectProperty(Building.grossFloorArea) >= 5000 m2}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 5항 4호 Check(REFB_11_5_4){ KS } KS { Building myBuilding{ getBuildingUsage() = “EducationAndResearchFacility.School” } isExist(myBuliding) = TRUE }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 5항 5호 Check(REFB_11_5_5){ KS } KS { Building myBuilding{ getBuildingUsage() = “BusinessFacility.GovernmentOfficeBuilding” OR getBuildingUsage() = “BusinessFacility.ForeignOfficialResidence” getBuildingUsage() != “ClassINeighborhoodLivingFacility” } isExist(myBuilding) = TRUE }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 5항 6호 Check(REFB_11_5_6){ KS } KS { hasObject(Building,Elevator)=TRUE }// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 11조 (건축물의 바깥쪽으로의 출구의 설치기준) 6항Check(REFB_11_6){ KS}KS{ Door myDoor{ isObjectProperty(Door.isEntrance)=TRUE } IF getObjectMaterial(myDoor)="Glass" THEN getObjectType(Glass)="Safety" }
//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 12조 (회전문의 설치기준) Check(REFB_12){ IF CS THEN KS}CS {Door myDoor {isObjectProperty(Door.isEntrance) = TRUEDoor.panelOperationType=“RevolvingDoor”}isExist(myDoor) = TRUE}KS {getResult(REFB_12_1)=TRUE}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 12조 (회전문의 설치기준) 1항Check(REFB_12_1){KS}KS {getElementDistance(myDoor, Stair, a)>= 2 mOR getElementDistance(myDoor, Escalator, a)>= 2 m}
//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙Check(REFB){ IF CS THEN KS1 ELSE KS2}CS{ getObjectLength(Building.RoofTop.FloorSlab)<=22 m getObjectWidth(Building.RoofTop.FloorSlab)<=22 m}KS1{ getObjectLength(Heliport)>=15 m getObjectWidth(Heliport)>=15 m}KS2{ getObjectLength(Heliport)>=22 m getObjectWidth(Heliport)>=22 m}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 13조 (헬리포트 및 구조공간 설치 기준) 1항Check(REFB_13_1){ KS}KS{ getResult(REFB_13_1_1)=True getResult(REFB_13_1_2)=True getResult(REFB_13_1_3)=True}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 13조 (헬리포트 및 구조공간 설치 기준) 1항 2호 Check(REFB_13_1_2){ KS } KS{ Space mySpace{ // 헬리포트의 중심으로부터 반경 12미터 이내의 공간 } isInstalled(Building, mySpace)=False isInstalled(Construction, mySpace)=False isInstalled(LandscapeFacility, mySpace)=False isInstalled(Railing, mySpace)=False }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 13조 (헬리포트 및 구조공간 설치 기준) 2항 Check(REFB_13_2){ KS } KS{ Space mySpace{ getObjectDiameter(Space)>=10 m } isInstalled(Building, mySpace)=False isInstalled(Construction, mySpace)=False isInstalled(Railing, mySpace)=False }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 13조 (헬리포트 및 구조공간 설치 기준) 3항Check (REFB_13_3){ KS}KS{ getResult(REFB_13_3_1)=True getResult(REFB_13_3_2)=True getResult(REFB_13_3_3)=True getResult(REFB_13_3_4)=True getResult(REFB_13_3_5)=True getResult(REFB_13_3_7)=True}// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 13조 (헬리포트 및 구조공간 설치 기준) 3항 1호 Check (REFB_13_3_1){ KS } KS{ Space mySpace{ isObjectProperty(Space.isEscape) = TRUE } mySpace.area > Roof.horizontalProjectionArea*0.1 }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 13조 (헬리포트 및 구조공간 설치 기준) 3항 2호 Check(REFB_13_3_2){ KS } KS{ Stair myStair { isObjectProperty(Stair.isEscape)=True } Stair myStair2 { isObjectProperty(Stair.isSpecialEscape)=True } Space mySpace{ isObjectProperty(Space.isEscape) = TRUE } isConnected(mySpace, myStair )=True OR isConnected(mySpace, myStair2 )=True }// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 13조 (헬리포트 및 구조공간 설치 기준) 3항 3호 Check(REFB_13_3_3){ KS } KS{ Space mySpace{ isObjectProperty(Space.isEscape) = TRUE } isFirePartition(mySpace)=True }// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 13조 (헬리포트 및 구조공간 설치 기준) 3항 4호 Check(REFB_13_3_4){ KS } KS{ isObjectProperty(Door.isEntrance)=True getObjectProperty( myDoor.effectiveWidth) > 0.9 m isObjectProperty(Door.isStrictFireproofDoor)=True// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 13조 (헬리포트 및 구조공간 설치 기준) 3항 5호 Check(REFB_13_3_5){ KS } KS{ Space mySpace{ isObjectProperty(Space.isEscape) = TRUE } isObjectProperty(mySpace.InteriorFinish.Material.nonCombustibility)=True }// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 13조 (헬리포트 및 구조공간 설치 기준) 3항 7호 check(REFB_13_3_7){ KS } KS{ Space mySpace{ isObjectProperty(Space.isEscape) = TRUE } hasObject(mySpace, WarningAndCommunicationFacility) = TRUE }
//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조 (방화구획의 설치) 1항check(REFB_14_1){KS}KS{ getResult(REFB_14_1_1) = TRUE AND getResult(REFB_14_1_2) = TRUE AND getResult(REFB_14_1_3) = TRUE}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조 (방화구획의 설치) 1항1호check(REFB_14_1_1){KS}KS{ Floor myFloor{ Floor.number>=10 } IF ( isExist(SprinklerSystem)=TRUE isObjectProperty(ExtinguishingSystem.isAutomatic) = TRUE ) ( isFirePartition(myFloor, 3000)=TRUE OR isFirePartition(myFloor, a, 1000)=TRUE ) }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조 (방화구획의 설치) 1항2호check(REFB_14_1_2){IF CS THEN KS}KS{ Floor myFloor { Floor.number>=3 AND Floor.number<0 } isObjectProperty(myFloor.isFirePartition)=TRUE}CS{ Ramp myRamp{ isGoThrough(getFloor(Floor.number=-1),Ramp,Ground)=TRUE } isObjectProperty(myRamp.isFirePartition)=FALSE }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조 (방화구획의설치) 1항3호 check(REFB_14_1_3){ KS2 AND IF CS THEN KS } Floor myFloor { getFloorNumebr()>= 11 } KS2{ isFirepartition(myFloor,200)=TRUE OR ((isExist(SprinklerSystem) = TRUE OR isObjectProperty(ExtinguishingSystem.isAutomatic) = TRUE) AND isFirepartition(myFloor,600)=TRUE) } CS1 { isObjectProperty(Space.InteriorFinish.Material.nonCombustibility)=TRUE } KS1 { isFirepartition(myFloor,500)=TRUE OR ((isExist(SprinklerSystem) = TRUE OR isObjectProperty(ExtinguishingSystem.isAutomatic) = TRUE) AND isFirepartition(myFloor,1500)=TRUE) }// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조 (방화구획의 설치기준) 3항Check(REFB_14_3){ KS} KS{ getResult(REFB_14_3_1)=True getResult(REFB_14_3_2)=True getResult(REFB_14_3_3)=True getResult(REFB_14_3_4)=True }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조 (방화구획의 설치기준) 3항 1호Check(REFB_14_3_1){ KS}KS{ Opening myOpening { isObjectProperty(Opening.isEscape)=True } getObjectDiameter(myOpening)>60 cm }// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조 (방화구획의 설치기준) 3항 2호Check(REFB_14_3_2){ KS}KS{ getObjectVerticalDistance(myOpening, myOpening)> 15 cm }// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조 (방화구획의 설치기준) 3항 4호 Check(REFB_14_3_4){ KS } KS{ getObjectVerticalDistance(Ladder, Floor.LowerFloor.FloorSlab.Surface, a)<= 50 cm }
// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조의2 (복합건축물의 피난시설 등) Check(REFB_14-2){ IF CS THEN KS } CS{ Building myBuilding1{ Building.usage = "MultiUnitHouse" OR Building.usage = "MedicalFacility" OR Building.usage = "ChildrenRelatedFacility" OR Building.usage = "WelfareFacilityForTheAged" } Building myBuilding2{ Building.usage = "AmusementFacility" OR Building.usage = "FacilityForStorageAndTreatmentOfDangerousSubstance" OR Building.usage = "Factory" OR Building.usage = "AutomobileRepairShop" } hasObject(Building, myBuilding1) = TRUE hasObject(Building, myBuilding2) = TRUE } KS{ getResult(REFB_14-2_0_1)=True getResult(REFB_14-2_0_2)=True getResult(REFB_14-2_0_3)=True getResult(REFB_14-2_0_4)=True getResult(REFB_14-2_0_5)=True }// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조의2 (복합건축물의 피난시설 등) 1호Check(REFB_14-2_0_1){ KS}KS{ Space mySpace{ Space.usage="MultiUnitHouse" OR Space.usage="MedicalFacility" OR Space.usage="ChildrenRelatedFacility" OR Space.usage="WelfareFacilityForTheAged" } Space mySpace2{ Space.usage="AmusementFacility" OR Space.usage="FacilityForStorageAndTreatmentOfDangerousSubstance" OR Space.usage="Factory" OR Space.usage="AutomobileRepairShop" }getSpaceDiatance(mySpace.Door, mySpace2.Door)>=30 m}// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조의 2 (복합건축물의 피난시설 등) 2호Check(REFB_14-2_0_2){ KS}KS{ Space mySpace{ Space.usage="MultiUnitHouse" OR Space.usage="MedicalFacility" OR Space.usage="ChildrenRelatedFacility" OR Space.usage="WelfareFacilityForTheAged" } Space mySpace2{ Space.usage="AmusementFacility" OR Space.usage="FacilityForStorageAndTreatmentOfDangerousSubstance" OR Space.usage="Factory" OR Space.usage="AutomobileRepairShop" } Passage myPassage{ isAccessible(Passage, mySpace)=True OR isAccessible(Passage, mySpace2)=True } isFirePartition(mySpace)=True isFirePartition(mySpace2)=True isFirePartition(myPassage)=True}// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조의2 (복합건축물의 피난시설 등) 3호Check(REFB_14-2_0_3){ KS}KS{ Space mySpace{ Space.usage="MultiUnitHouse" OR Space.usage="MedicalFacility" OR Space.usage="ChildrenRelatedFacility" OR Space.usage="WelfareFacilityForTheAged" } Space mySpace2{ Space.usage="AmusementFacility" OR Space.usage="FacilityForStorageAndTreatmentOfDangerousSubstance" OR Space.usage="Factory" OR Space.usage="AutomobileRepairShop" } isAdjacent(mySpace, mySpace2)=False}// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조의2 (복합건축물의 피난시설 등) 4호 Check(REFB_14-2_0_4){ KS } KS{ isFireResistantStructure(MainStructuralPart)=True }// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 14조의2 (복합건축물의 피난시설 등) 5호 Check(REFB_14-2_0_5){ KS } KS{ Object myObject{ getObject(Room.wall) getObject(Room.CeilingCovering) } Corridor myCorridor{ isGoThrough(Room, Corridor, Ground )=True } Stair myStair{ isGoThrough(Room,Stair, Ground )=True } Passage myPassage{ isGoThrough(Room,Passage, Ground )=True } Space mySpace{ Space.usage==myCorridor.usage OR Space.usage==myStair.usage OR Space.usage=myPassage.usage } Object myObject2{ getObject(mySpace.wall) getObject(mySpace.CeilingCovering) } ( isObjectProperty(myObject.InteriorFinish.Material.nonCombustibility)=True OR isObjectProperty(myObject.InteriorFinish.Material.quasiNonCombustibility)=True OR isObjectProperty(myObject.InteriorFinish.Material.flameResistance)= True ) isObjectProperty(myObject2.InteriorFinish.Material.nonCombustibility)=True OR isObjectProperty(myObject2.InteriorFinish.Material.quasiNonCombustibility)=True }
//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 1항check(REFB_15_1){ KS}KS{ getResult(REFB_15_1_1)= TRUE getResult(REFB_15_1_2)=TRUE getResult(REFB_15_1_3)=TRUE getResult(REFB_15_1_4)=TRUE}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 1항1호check(REFB_15_1_1){ IF CS THEN KS}CS{ getObjectHeight(Stair)>3 m}KS{ isExist(StairLanding )= TRUE getPaceWidth(StairLanding>=1.2 m getObjectCount(StairLanding)>=getObjectCount(getObjectCount(StairLanding))/3 IF getObjectCount(StairLanding)>1 THEN getObjectVerticalDistance(StairLanding ,StairLanding)>3 m END IF }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 1항2호check(REFB_15_1_2){ KS}KS{ IF getObjectHeight(Stair)>1 m OR getObjectHeight(StairLanding)>1 m) THEN isExist(Railing)=TRUE END IF}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 1항3호check(REFB_15_1_3){ IF !CS THEN KS}CS{ getStairStepHeight()<=15 cm getStairStepWidth()>=30 cm}KS{ IF getObjectWidth(Stair)>=3 m THEN hasObject(Stair, Railing) = TRUE N=getObjectWidth(Stair)/3 getObjectCount(Railing)>=N IF N>1 THEN getObjectDistance(Railing,Railing)<3 m END IF END IF }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 1항4호check(REFB_15_1_4){ KS}KS{getObjectProperty(Stair.effectiveHeight)>=2.1 m}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 2항check(REFB_15_2){ KS}KS{ IF getResult(REFB_15_1)=TRUE THEN getResult(REFB_15_2_1)=TRUE getResult(REFB_15_2_2)=TRUE getResult(REFB_15_2_3)=TRUE getResult(REFB_15_2_4)=TRUE getResult(REFB_15_2_5)=TRUE getResult(REFB_15_2_6)=TRUE END IF }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 2항1호check(REFB_15_2_1){ IF CS THEN KS}CS{ getBuildingUsage()="ElementarySchool"}KS{ getObjectWidth(Stair)>= 150 cm getObjectWidth(StairLanding)>150 cm getObjectProperty(Stair.riserHeight)>=16 cm getObjectProperty(Stair.riserWidth)>=26 cm}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 2항2호check(REFB_15_2_2){ IF CS THEN KS}CS{ getBuildingUsage()="MiddleSchool" OR getBuildingUsage()="HighSchool"}KS{ getObjectWidth(Stair)>=150 cm getObjectWidth(StairLanding)>150 cm getObjectProperty(Stair.riserHeight)>=18 cm getObjectProperty(Stair.riserWidth)>=26 cm}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 2항3호check(REFB_15_2_3){ IF CS THEN KS }CS{ getBuildingUsage()= "CulturalAndAssemblyFacility.PerformanceHall" OR getBuildingUsage()= "CulturalAndAssemblyFacility.AssemblyHall" OR getBuildingUsage()= "CulturalAndAssemblyFacility.Auditorium" OR getBuildingUsage()= "CommercialFacility "}KS{ getObjectWidth(Stair)>=120 cm getObjectWidth(StairLanding)>=120 cm}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 2항4호check(REFB_15_2_4){ IF CS THEN KS }CS{ Floor myFloor{ N=getFloorNumber(Stair) Floor.number=N+1 } (getTotalFloorArea(myFloor.Room)>=200 m2 OR getTotalFloorArea(Room)>=100 m2) getFloorNumber(Stair)<0 }KS{ getObjectWidth(Stair)>=120 cm getObjectWidth(StairLanding)>120 cm}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 2항5호check(REFB_15_2_5){ KS}KS{ getObjectWidth(Stair)>=120 cm getObjectWidth(StairLanding)>120 cm}// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 2항 6호check(REFB_15_2_6){ IF CS THEN KS}CS{Space mySpace{getObjectProperty(Space.usage) = "Workplace"} isInstalled(Stair,mySpace) = TRUE}KS{ getResult(ROSHA_26) = TRUE getResult(ROSHA_27) = TRUE getResult(ROSHA_28) = TRUE getResult(ROSHA_29) = TRUE getResult(ROSHA_30) = TRUE}check(REFB_15_3){ IF CS THEN KS}CS{ getBuildingUsage()= "ClassINeighborhoodLivingFacility"OR getBuildingUsage() = "ClassIINeighborhoodLivingFacility"OR getBuildingUsage() = "CulturalAndAssemblyFacility"OR getBuildingUsage() = "ReligiousFacility"OR getBuildingUsage() = "CommercialFacility"OR getBuildingUsage() = "TransportationFacility"OR getBuildingUsage() = "MedicalFacility"OR getBuildingUsage() = "FacilitiesForTheAgedAndChildren"OR getBuildingUsage() = "BusinessFacility"OR getBuildingUsage() = "LodgingFacility"OR getBuildingUsage() = "AmusementFacility"OR getBuildingUsage() = "FacilityForTourismAndRelaxation"OR (getBuildingUsage() = "MultiUnitHouse" AND getBuildingUsage() != "Dormitory")}KS{ isExist(Railing)=TRUE OR (isExist(Railing)=FALSE AND isExist(Handle)=TRUE) }check(REFB_15_4){ KS}KS{ getResult(REFB_15_4_1)=TRUE AND getResult(REFB_15_4_2)=TRUE AND getResult(REFB_15_4_3)=TRUE}check(REFB_15_4_1){ KS}KS{ getElementWidth(Railing,Handle) >= 3.2CM AND getElementWidth(Handle) <= 3.8CM getObjectProperty(Handle.sectionShapeType)="Circle" OR "Oval"}check(REFB_15_4_2){ KS}KS{ getObjectDistance(Handle,WallLantern) >= 5CM AND getObjectVerticalDistance(Handle,Stair) = 85CM}// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 4항 3호check(REFB_15_4_3){ KS}KS{ getElementDistance(Handle,Stair.EndPart) <= 30cm}건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 5항 Check(REFB_15_5){ IF CS THEN KS}CS{isEixst(Ramp)=TRUE }KS {getResult(REFB_15_5_1)=TRUEgetResult(REFB_15_5_3)=TRUE}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 5항 1호 Check(REFB_15_5_1){ KS}KS{getObjectGradient(Ramp) <= 12.5%}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 5항 2호 Check(REFB_15_5_2){??KS}KS{myRamp = getObject(Ramp)getObjectproperty(myRamp, finish.material) == 'nonslip' or 'rough'}// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 5항 3호check(REFB_15_5_3){ IF CS THEN KS}CS{ isInstalled(Ramp, Building) = TRUE}KS{ getResult(unimplemented_CDAPA) = TRUE}// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 6항Check(REFB_15_6){ IF CS THEN KS}Stair myStair{ getResult(REFB_15_1) = TRUE}CS{ isReplaced(myStair, Ramp) = TRUE}KS{ getResult(REFB_15_5) = TRUE}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 7항check(REFP_15_7){ IF CS THEN KS}CS{Floor myFloor{isObjectProperty(Floor.isEscape)=TRUE} isAccessible(Stair,myFloor) OR isAccessible(Stair,Ground)}KS{ getResult(REFP_15_7_1) OR getResult(REFP_15_7_2)}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 7항 1호check(REFP_15_7_1){ KS}KS{ getBuildingUsage() = "MultiUnitHouse" AND getStairStepWidth >= 1.2M AND getPaceWidth >= 1.2M}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조 (계단의 설치기준) 7항 2호check(REFP_15_7_2){ KS}KS{ getBuildingUsage() != "MultiUnitHouse" AND getStairStepWidth >= 1.5M AND getPaceWidth >= 1.5M}check(REFP_15_8){ KS}KS{ getObjectUsage(Stair)= "ElevatorMachineRoom" OR "WatchTower" AND getResult(REFP_15_1)=FALSE AND getResult(REFP_15_2)=FALSE AND getResult(REFP_15_3)=FALSE AND getResult(REFP_15_4)=FALSE AND getResult(REFP_15_5)=FALSE AND getResult(REFP_15_6)=FALSE AND getResult(REFP_15_7)=FALSE}

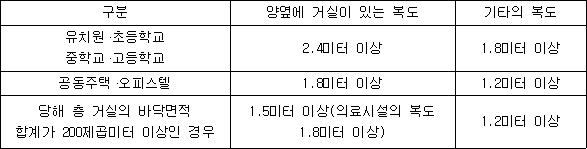

//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조의2 (복도의 너비 및 설치기준) 2항1호check(REFB_15-2_2_1){ KS}KS{ IF getTotalFloorArea(Corridor.Floor.Space)<500 m2 THEN getObjectProperty(Corridor.effectiveWidth)>=1.5 m END IF }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조의2 (복도의 너비 및 설치기준) 2항2호check(REFB_15-2_2_2){ KS}KS{ IF getTotalFloorArea(Corridor.Floor.Space)>=500 m2 getTotalFloorArea(Corridor.Floor.Space)<1000 m2 THEN getObjectProperty(Corridor.effectiveWidth)>=1.8 m END IF }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조의2 (복도의 너비 및 설치기준) 2항3호Check(REFB_15-2_2_3){ KS}KS{ IF getTotalFloorArea(Corridor.Floor.Space)>=1000 m2 THEN getObjectProperty(Corridor.effectiveWidth)>=2.4 m END IF}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조의2 (복도의 너비 및 설치기준) 3항Check(REFB_15-2_3){ IF CS THEN KS}CS{ getSpaceUsage(Space)="CulturalAndAssemblyFacility.PerformanceHall" isExist(Corridor)=TRUE}KS{ getResult(REFB_15-2_3_1) = TRUE getResult(REFB_15-2_3_2) = TRUE}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조의2 (복도의 너비 및 설치기준) 3항1호Check(REFB_15-2_3_1){ IF CS THEN KS}CS{ Space mySpace{ getSpaceUsage(Space)="IndividualAuditorium" } getFloorArea(mySpace)>300 m2}KS{}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조의2 (복도의 너비 및 설치기준) 3항2호Check(REFB_15-2_3_2){ IF CS THEN KS}CS{ Space mySpace{ getSpaceUsage(Space)="IndividualAuditorium" } getFloorArea(mySpace)>300 m2 getObjectCount(Floor.One.mySpace)>=2 }KS{}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조의2 (복도의 너비 및 설치기준) 1항Check(EDBA_15-2_1){ IF getBuildingUsage()="Kindergarten" OR getBuildingUsage()="ElementarySchool" OR getBuildingUsage()="MiddleSchool" OR getBuildingUsage()="HightSchool" THEN IF isExternal(Corridor)=FALSE THEN getObjectProperty(Corridor.effectiveWidth)>2.4 m ELSE THEN getObjectProperty(Corridor.effectiveWidth)>1.8 m END IF END IF IF getBuildingUsage()="MultiUnitHouse" OR getBuildingUsage()="Officetel" THEN IF isExternal(Corridor)=FALSE THEN getObjectProperty(Corridor.effectiveWidth)>1.8 m ELSE THEN getObjectProperty(Corridor.effectiveWidth)>1.2 m END IF END IF IF getTotalFloorArea(Corridor.Floor.Room)>200 m2 THEN IF isExternal(Corridor)=FALSE THEN IF getBuildingUsage()="MedicalFacilities" THEN getObjectProperty(Corridor.effectiveWidth)>1.8 m ELSE THEN getObjectProperty(Corridor.effectiveWidth)>1.5 m END IF ELSE THEN getObjectProperty(Corridor.effectiveWidth)>1.2 m END IF END IF }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조의2 (복도의 너비 및 설치기준) 2항check(REFB_15-2_2){ IF CS THEN KS }CS{Space mySpace{getSpaceUsage(Space) = “AssemblyHall”OR getSpaceUsage(Space) = “PerformanceHall”} Corridor myCorridor{ isAdjacent(mySpace,Corridor) = TRUE } (getBuildingUsage()="CulturalAndAssemblyFacility.PerformanceHall" OR getBuildingUsage()="CulturalAndAssemblyFacility.AssemblyHall" OR getBuildingUsage()="CulturalAndAssemblyFacility.Auditorium" OR getBuildingUsage()="CulturalAndAssemblyFacility.ExhibitionHall" OR getBuildingUsage()="ReligiousFacility.ReligiousAssemblyFacility" OR getBuildingUsage()="FacilitiesForTheAgedAndChildren.ChildrenRelatedFacility" OR getBuildingUsage()="FacilitiesForTheAgedAndChildren.WelfareFacilityForTheAged" OR getBuildingUsage()="Trainingfacility.TrainingFacilitiesInLiving " OR getBuildingUsage()="AmusementFacility.tavern" OR getBuildingUsage()="AmusementFacility.FuneralParlors" ) isExist(myCorridor)=TRUE }KS{ getResult(REFB_15-2_2_1)=TRUE getResult(REFB_15-2_2_2)=TRUE getResult(REFB_15-2_2_3)=TRUE}//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 15조의2 (복도의 너비 및 설치기준) 1항Check(REFB_15-2_1){ KS}KS{ IF (Building.usage="Kindergarten" OR Building.usage="ElementarySchool" OR Building.usage="MiddleAndHighSchool" ) IF(isAdjacent(Corridor, Room)=True) THEN Corridor.width>=2.4 m ELSE THEN Corridor.width>=1.8 m END IF ELSE IF( Building.usage="MultiUnitHouse" OR Building.usage="Officetels" ) IF( isAdjacent(Corridor, Room)=True) TEHN Corridor.width>=1.8 m ELSE THEN Corridor.width>=1.2 m END IF ELSE IF( Floor.One.Room.area > 200 m2) IF(isAdjacent(Corridor, Room)=True) TEHN IF (Building.usage="MedicalFacility") THEN Corridor.width>=1.8 m ELSE THEN Corridor.width>=1.5 m ELSE THEN Corridor.width>=1.2 m END IF END IF}
// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 16조 (거실의 반자높이) 1항check(REFB_16_1){ IF (CS) THEN KS}CS{ getResult(REFB_16_2) = FALSE}KS{ getSpaceHeight(Room, b) >= 2.1m}// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 16조 (거실의 반자높이) 2항check(REFB_16_2){IF (CS1 AND CS2) THEN KS}CS1{VentilatorEquipment myVentilatorEquipemnt{isObjectProperty(VentilatorEquipment.isMechanical)=TRUE} isExist(myVentilatorEquipemn) = FALSE }CS2{ Space mySpace{ getSpaceUsage(Space) = “Auditorium” OR getSpaceUsage(Space) = “AssemblyHall” } ((getBuildingUsage() = “CulturalAndAssemblyFacilities.Tavern” getBuildingUsage() != “ExhibitionHalls.Tavern” getBuildingUsage() != “ZoologicalAndBotanicalGardens.Tavern”) OR getBuildingUsage() = "ReligiousFacilities.Tavern”
//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 17조 (채광 및 환기를 위한 창문등) 2항 check(REFB_17_2){ IF !CS THEN KS } CS{ AirConditioningSystem myAirConditioningSystem{ isObjectProperty(AirConditioningSystem.isCentralControl) } VentilatorEquipment myVentilatorEquipemnt{ isObjectProperty(VentilatorEquipment.isMechanical)=TRUE } hasElement(Room, myVentilatorEquipemnt)= TRUE OR hasElement(Room, myAirConditioningSystem) = TRUE } KS{ Window myWindow{ hasElement(Room, Window) = TRUE } getElementArea(myWindow) >= getFloorArea(Room)*0.05 }// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 17조 (채광 및 환기를 위한 창문등) 3항 check(REFB_17_3){ IF CS THEN KS } CS{ Door myDoor{ getObjectProperty(Door.panelOperationType) = "SlidingDoor" } Room myRoom{ isPartitioned(Room, myDoor, Room) = TRUE } } KS{ myRoom = Room }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 17조 (채광 및 환기를 위한 창문등) 1항 check(REFB_17_1){ IF (getResult(REFB_*_1-3) = FALSE) THEN KS } KS{ Window myWindow{ hasElement(Room, myWindow) = TRUE } getElementArea(myWindow) >= getFloorArea(Room)*0.1 }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 17조 (채광 및 환기를 위한 창문등) 4항check(REFB_17_4){ getObjectHeight(Railing) >= 1.2 m OR getObjectHeight(FallPreventionSafetyFacility) >= 1.2 m }
// 건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 18조 (거실등의 방습) 1항Check(REFB_18_1){IF !CS THEN KS}KS{ getObjectHeight(getFloor(BottomFloor))>=45CM}CS { isObjectProperty(Ground.Surface.isDampProof)=TRUE }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 18조 (거실등의 방습) 2항 Check(REFB_18_2){ IF CS THEN KS } CS{ getResult(REFB_18_2_1)=TRUE OR getResult(REFB_18_2_2)=TRUE } KS{ Finish myFinish{ getObjectDistance(Finish,floor)<=1 isObjectPropert(InteriorFinish.Material.waterResistance)=TRUE }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 18조 (거실등의방습) 2항1호 Check(REFB_18_2_1){ KS } KS{ Space mySpace1{ getSpaceUsage() = "Bathroom" } Space mySpace2{ getSpaceUsage() = "Kitchen" } getBuildingUsage(mySpace1.Building) = "ClassINeighborhoodLivingFacility.BathHouse" OR getBuildingUsage(mySpace2.Building) = "ClassINeighborhoodLivingFacility.RestingRestaurant" }//건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 18조 (거실등의 방습) 2항 2호 Check(REFB_18_2_2){ KS } KS{ Space mySpace1{ getSpaceUsage() = "Kitchen" } Space mySpace2{ getSpaceUsage() = "Bathroom" } getBuildingUsage(mySpace1.Building) = "ClassINeighborhoodLivingFacility.Restarant" OR getBuildingUsage(mySpace2.Building) = "ClassINeighborhoodLivingFacility.LodgingFacilities" }
check(REFB_19_1){ KS}KS{Wall myWall{ isObjectProperty(Wall.isPartitionWall) = TRUE}Floor myFloor{hasObject(Floor, myWall)} isFireResistantStructure(myWall)=TRUE(isConnectedTo(myWall, Roof.BottomSurface) = TRUE OR isCOnnectedTo(myWall, myFloor.UpperFloor.FloorSlab) = TRUE)}check(REFB_19_1){ KS}KS{Wall myWall{ isObjectProperty(Wall.isPartitionWall) = TRUE}Floor myFloor{hasObject(Floor, myWall)} isFireResistantStructure(myWall)=TRUE(isConnectedTo(myWall, Roof.BottomSurface) = TRUE OR isCOnnectedTo(myWall, myFloor.UpperFloor.FloorSlab) = TRUE)}check(REFB_19_2_1){ KS } KS{ Wall myWall{ isObjectProperty(Wall.isPartitionWall) = TRUE } getObjectProperty(myWall.Structure.materialType) = "ReinforcedConcrete" OR "SteelFramedReinforcedConcrete" AND getObjectThickness(myWall) >= 10CM }check(REFB_19_2_2){ KS } KS{ Wall myWall{ isObjectProperty(Wall.isPartitionWall) = TRUE } getObjectProperty(myWall.Structure.materialType) = "PlainConcrete" OR "Stone" getObjectThickness(myWall) >= 10CM }check(REFB_19_2_3){ KS } KS{ Wall myWall{ isObjectProperty(Wall.isPartitionWall) = TRUE } getObjectProperty(myWall.Structure.materialType) = "ConcreteBlock" OR "Brick" getObjectThickness(myWall) >= 19CM }check(REFB_19_2){ KS}KS{ getResult(REFB_19_2_1)= TRUE OR getResult(REFB_19_2_2)= TRUE OR getResult(REFB_19_2_3)= TRUE OR getResult(REFB_19_2_4)= TRUE OR getResult(REFB_19_2_5)= TRUE}
check(REFB_20_0_1){ KS}KS{ getObjectDistance(Chimney, Ground) -getObjectDistance(Roof, Ground)>= 1M} //건축물의 피난ㆍ방화구조 등의 기준에 관한 규칙 20조 (건축물에 설치하는 굴뚝) 3호Check(REFB_20_0_3){ IF CS THEN KS}CS{ getObjectMaterial(Chimney.Material.nonCombustibility) = TRUE}KS{ Chimney myChimney{ getObjectMaterial(Chimney.Material.nonCombustibility) = TRUE } isObjectProperty(A.Finish.Material.nonCombustibility) = TRUE getObjectProperty(A.Finish.Material.nonCombustibility) != isObjectProperty(B.Finish.Material.nonCombustibility) = TRUE getFloorNumber(myChimney) = LF getObjectMaterial(myChimney) != "Metal"}check(REFB_20_0_4){IF !CS THEN KS}CS{ (isObjectProperty(Chimney.Material.nonCombustibility)= TRUE AND !(getObjectProperty(Chimney.Material)="Metal")) And getElementWidth(NoncombustibleMaterials)>=10}KS{ getObjectDistance(Chimney, combustibleMaterials)>= 15CM AND getObjectProperty(Chimney.Material)="Metal")) }check(REFB_20){ KS}KS{ isExist(Chimney)=TRUE AND (getResult(REFB_20_0_1)=TRUE AND getResult(REFB_20_0_3)=TRUE AND getResult(REFB_20_0_4)=TRUE)}
check(REFB_20-2){ getResult(REFB_*_2) = True getObjectProperty(MainStructuralPart.Material.nonCombustibility)= TRUE getBuildingStoriesCount()<2; }
